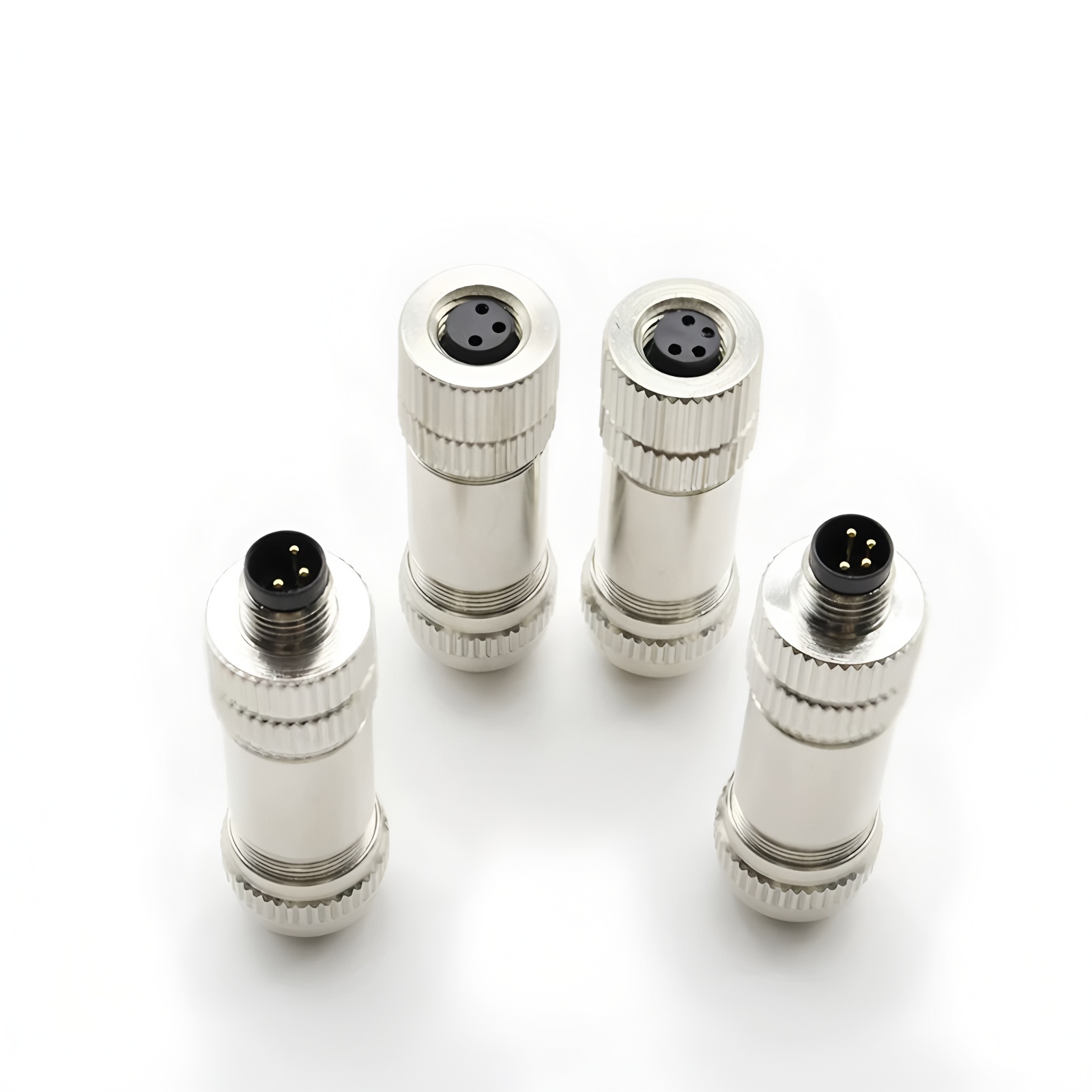

Ethernet 4-core metal female straight head assembly M8 circular connector

Description :

  Waterproof connector is an electrical interconnect device designed specifically for harsh environments, which solves the problem of stable signal and power transmission in humid, dusty, and temperature changing scenarios. This product has an IP67 or IP68 protection level and can maintain sealing in underwater or high-pressure flushing environments. Typical operating conditions include outdoor lighting, automation equipment, and sensor connections. Its design aims to ensure reliable circuit contact even under frequent plugging and extreme temperature differences, effectively preventing short circuits, oxidation, and signal interference. It is a key foundational component of industrial IoT and outdoor electronic devices.

  This waterproof connector exhibits stable electrical performance and mechanical durability, with a rated voltage of 50V AC or 60V DC and a rated current of 3A, meeting most low-power control signal and low-power power transmission requirements. The contact impedance is controlled within 5m Ω, and the insulation impedance is over 100M Ω, ensuring low loss and high safety. In terms of mechanical lifespan, with over 100 insertions and removals, it is suitable for moderate frequency maintenance and replacement scenarios. The working temperature range covers -25 ℃ to 85 ℃, and the wire tail structure has been strengthened to adapt to the fixing and sealing of different wire diameters, meeting the physical and electrical testing standards of conventional industrial electronic components.

  When selecting, it is important to distinguish between the specific application scenarios of IP67 and IP68. IP67 is suitable for short-term immersion or rainproof environments, while IP68 is suitable for long-term diving or high-pressure water jet cleaning scenarios. If the application environment involves higher voltage or high current loads, it is necessary to confirm whether it exceeds the limits of 50V AC/60V DC and 3A to avoid overload heating. For dynamic connection scenarios that require extremely high plug-in life (such as thousands of times), it is recommended to evaluate dedicated high-frequency plug-in models. In addition, attention should be paid to the matching between the diameter of the wire and the tail of the connector to ensure that the sealing ring can tightly wrap around the wire, otherwise it will affect the overall protection level and cause water vapor infiltration.

  During installation, it should be ensured that the male and female joints are fully locked, and a snap sound or specified torque should be heard to ensure the effectiveness of the IP protection level. During daily maintenance, regularly check the surface of the connector for cracks, aging, or signs of corrosion, especially in areas with high temperatures or strong ultraviolet radiation. If poor contact is found, check whether the pins are oxidized or deformed, and use professional cleaning agents to clean them if necessary. Common faults are often caused by aging sealing rings leading to water ingress. It is recommended to shorten the inspection cycle in high humidity environments. Avoid deformation under heavy pressure during storage, keep dry and ventilated to extend the service life of waterproof connectors and maintain stable electrical performance.
