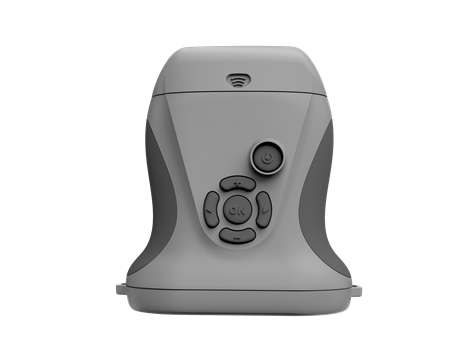

First generation night vision device NV2100C
Category:
Instrumentation/optical instrument/Other optical instruments
Model:
NV2100C
Brand:
Kenat
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Description :
Model YG-NV2100C-K1 Full-color night vision Basic Parameters system architecture Four core ARM Cortex A53 Processor, Embedding Formula Linux
Kernel, With a watchdog, 2GB DDRimage sensor 1/1.8 '' Super Star Level; CMOS Lens specifications F0.8 25mm 4MP Chip capability Built in NPU Chip, Computing power ≥ 2TOPS Minimum Illumination Full color: 0.002 Lux @F0.8 maximum resolution 400 Ten thousand pixels, full color Video Frame Rate 10fps/30fps live video video processing
Support H.265/H.264 Video encoding, Support dual stream and its
Code Rate and other parameter settings, Output maximum resolution; 2K，Display Screen 3.6-inch high-definition LCD screen (resolution 720RGB * 1280Dots); ,
Dimensions 47.2 * 84.58mmpower supply The power module meets the design specifications Main control memory Main control memory 4G Video recording and photography Capable of recording and taking photos to meet design requirements Screen-off function Can meet the requirement of screen shutdown during the recording process Zoom function Electronic zoom reaches 4X zoom index Chinese English menu There is a function to switch between Chinese and English keypad When 6 buttons are equipped with button operations, they will be displayed on the screen accordingly Basic Parameters white balance automatic Gain control automatic Remote upgrade function SD card upgrade AI Digital noise reduction Support Exposure mode automatic Video signal interface DSI SD Card interface Support MicroSD Card storage (up to 256GB) USB Interface USB2.0 power supply DC5V/2A General specifications Static electricity level Contact ± 4KV, air ± 8kV Working temperature and humidity -10℃~+55℃ , Humidity less than; 95% (no condensation) AfterSalesService :
