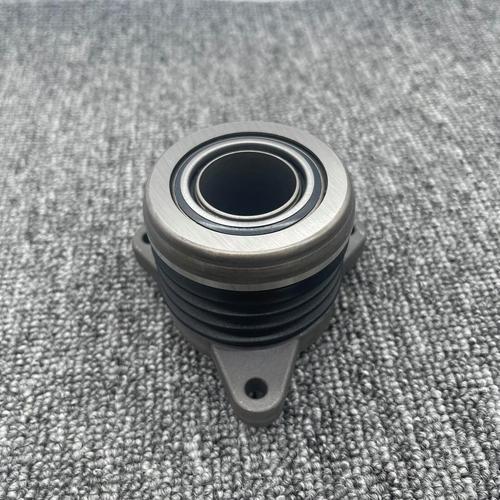

Automobile clutch release bearing with high precision and low noise, suitable for various types of transmissions

Description :

  The clutch release bearing is a key vulnerable component in the automotive transmission system, mainly installed at the front end of the input shaft of the gearbox. Its core function is to push the inner end of the diaphragm spring when the driver steps on the clutch pedal, causing the pressure plate to separate from the friction plate, thereby cutting off the engine power transmission and achieving smooth shifting or parking start. This component is subjected to high-speed rotation and intermittent stress conditions for a long time, and needs to withstand large axial loads and high temperature environments. The clutch release bearings of Chengchuang brand are designed to solve the problems of traditional bearings such as easy wear, loud noise, and short service life, ensuring complete power cut-off and improving the linearity and comfort of driving control. They are widely used in various manual transmission passenger cars and light commercial vehicles.

  In terms of specifications and processes, clutch release bearings are usually made of high carbon chromium bearing steel, which has extremely high hardness and wear resistance. The internal raceway has undergone precision grinding and processing, with low surface roughness and high-quality lubricating grease to ensure low-noise operation even under high-speed conditions of thousands of revolutions per minute. The shell is often made of engineering plastics or metal stamping parts, which have good heat resistance and structural strength. The execution standards usually refer to ISO or GB/T automotive bearing related specifications, and some high-end models have passed IATF16949 quality system certification. The Chengchuang clutch release bearing undergoes strict silent testing and life bench testing before leaving the factory to ensure the stability of radial clearance and axial thrust, and prevent installation difficulties or early failure caused by dimensional deviations.

  When selecting, special attention should be paid to the inner diameter, outer diameter, width, and installation buckle position of the bearings. The diameter of the input shaft sleeve of different brands and models of transmissions may vary, and it must be used exclusively for the vehicle. If there is a "rustling" sound or metal friction sound when the clutch is pressed on the vehicle, and the sound disappears after releasing the pedal, it is usually a typical sign of damaged release bearings. In addition, it is necessary to distinguish between ordinary mechanical separation bearings and hydraulic separation bearings (concentric bearings), the latter of which is integrated into the main cylinder and cannot be replaced separately. Chengchuang clutch release bearings offer a variety of common vehicle specifications. When purchasing, the VIN code or original part number of the vehicle should be checked to avoid delays in returns due to model mismatch. For modified or high-performance vehicles, it is recommended to choose the enhanced high-temperature resistant series.

  When installing the clutch release bearing, be sure to clean the transmission input shaft sleeve, remove old grease and rust, and apply a small amount of special high-temperature lubricating grease. Avoid excessive use to avoid contaminating the clutch plates. Check whether the guide bearing (if any) rotates flexibly and ensure the concentricity of the input shaft. It is strictly prohibited to use a hammer to directly strike the outer ring or cage of the bearing during installation. Special tools or sleeves should be used to evenly press in to prevent deformation of the cage and jamming. In daily driving, avoid prolonged semi linked states and reduce unnecessary wear of the separation bearings. It is generally recommended to replace the release bearing synchronously every 80000 to 100000 kilometers or when replacing the clutch three piece set to prevent sudden failures. If you find that the pedal does not return smoothly or there is gear shifting, you should promptly inspect the transmission system.
