Outdoor monitoring pole galvanized spray anti-corrosion wind resistant video monitoring support rod

Description :

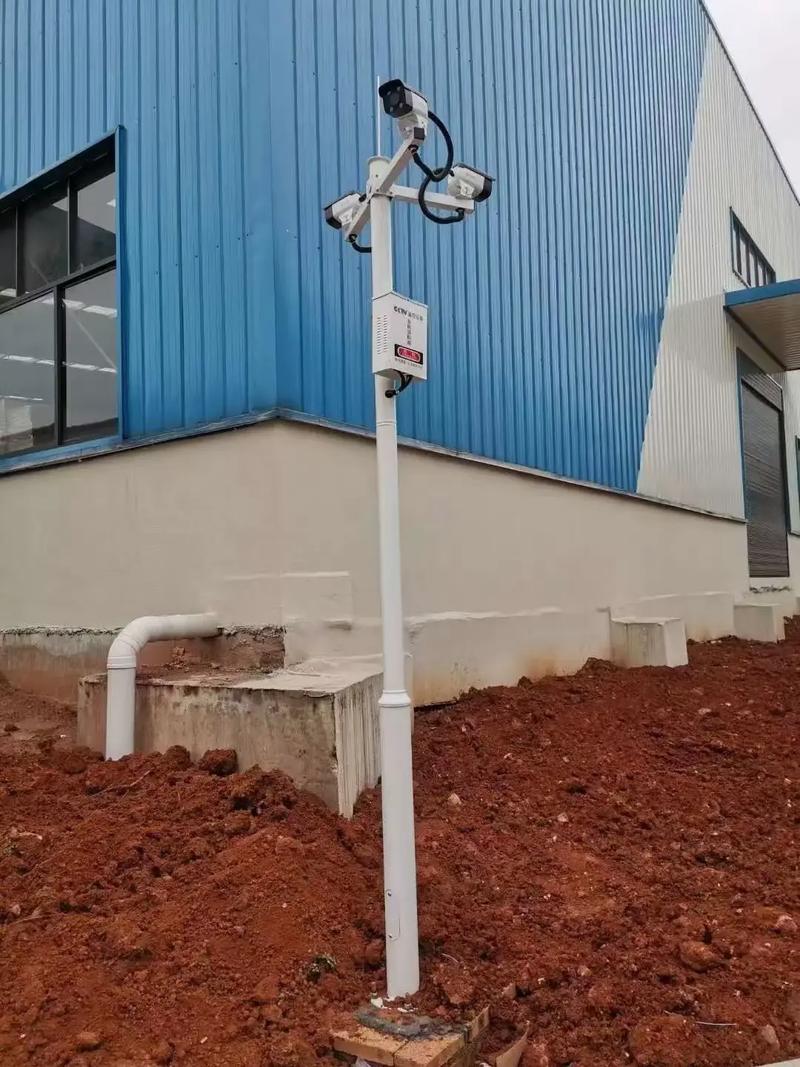

  Monitoring poles are the basic supporting facilities for the front-end equipment of video surveillance systems, mainly used for installing cameras, fill lights, lightning protection equipment, etc., to solve the problems of equipment installation and signal transmission protection in complex outdoor environments. This product is widely used in typical working conditions such as urban roads, residential areas, parks, squares, and traffic intersections, providing stable and reliable physical support for security monitoring. As a key component connecting the ground foundation and the front-end camera, the monitoring pole needs to have sufficient structural strength to resist wind loads, and also adapt to long-term outdoor exposure weather conditions to ensure stable and non shaking monitoring images, ensuring the smooth progress of all-weather safety monitoring tasks.

  Monitoring poles are usually made of high-quality Q235 or Q345 steel, and undergo precise bending and welding forming processes to ensure the verticality and structural stability of the pole body. After surface treatment and hot-dip galvanizing, the thickness of the zinc layer is usually not less than 65 μ m, followed by electrostatic spraying treatment. The coating is uniform and firm, with excellent anti-corrosion and anti rust properties, suitable for coastal and humid environments. The implementation standard refers to GB/T 13912 Technical Requirements and Test Methods for Hot Dip Galvanized Coatings on Steel Parts with Metal Coating, as well as relevant industry security facility installation specifications. The conventional height range is 3 meters to 6 meters, with a wall thickness of 3mm to 5mm. The flange size is designed according to the height and wind pressure level to ensure that the mechanical performance of the overall structure meets the requirements for safe use.

  When selecting a monitoring pole, it is important to consider the wind pressure level of the installation environment, the weight of the camera, and the length of the cantilever. For coastal or windy areas, reinforced monitoring poles with thicker walls and galvanized layers should be selected; For ordinary residential areas or indoor halls, standard products can be selected to reduce costs. Attention should be paid to distinguishing the differences between monitoring poles and street lamp poles. The former focuses more on the compatibility and concealed wiring of the top installation platform, while the latter emphasizes the lighting function. If heavy ball machines or multiple cameras need to be installed, it is recommended to choose tapered variable diameter rods to increase bottom support. Not applicable scenarios include areas with soft geological conditions and no foundation reinforcement, or extreme typhoon prone areas that exceed the designed wind resistance level. In such cases, special foundations or reinforced structures need to be customized.

  Before installing the monitoring pole, it is necessary to pre embed the foot cage and pour concrete foundation. The pole can only be lifted after the foundation has solidified. During installation, a level should be used to correct the verticality, and the error should be controlled within 0.3%. It is recommended to check the surface coating of the pole body once a year for peeling or rusting, especially at the welds and flange connections. If any damage is found, it should be repainted in a timely manner to prevent rusting from spreading. Regularly check if fasteners are loose, especially after experiencing strong winds or earthquakes. Common faults include pole tilting, camera bracket breakage, etc., which are often caused by unstable foundations or overloaded installation. In daily use, it is necessary to avoid hanging heavy objects on the pole or installing unauthorized equipment to extend the service life of the monitoring pole and ensure the continuous and stable operation of the monitoring system.
