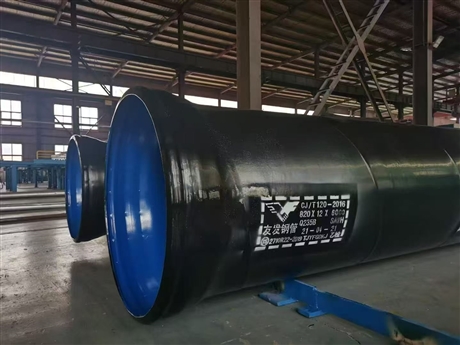

Spiral anti-corrosion steel pipe

Description :

Spiral anti-corrosion steel pipe is a large-diameter conveying pipeline that uses spiral seam submerged arc welded steel pipe as the substrate and undergoes professional anti-corrosion treatment on the outer and inner walls of the steel pipe through various anti-corrosion processes such as 3PE, 2PE, epoxy coal tar, epoxy powder, etc. The pipe is rolled using double-sided submerged arc welding technology, with firm welds and strong pressure bearing capacity. Combined with multiple layers of anti-corrosion protection, it is resistant to soil corrosion, groundwater erosion, and has a long service life. It is the main pipe material for long-distance transportation networks.

Product Features

1.  Strong pressure bearing capacity and large caliber

The spiral steel pipe itself has a uniform wall thickness, and the weld seam is formed in a spiral shape. It has a stable structure, strong pressure resistance, and can produce large-diameter pipelines, suitable for long-distance and high flow medium transportation.

2.  Multi layer anti-corrosion, long service life

The outer wall adopts 3PE reinforced anti-corrosion and epoxy coal tar anti-corrosion, with strong adhesion, waterproof and moisture-proof, acid and alkali resistant, soil corrosion resistant, and microbial erosion resistant. The buried service life can reach more than 50 years.

The inner wall can be treated with epoxy anti-corrosion and cement mortar lining, with a smooth and non scaling inner wall, low conveying resistance, and no rust.

3.  Good sealing performance

Excellent welding performance, strong pipeline sealing, not easy to leak, suitable for high-pressure fluid transportation.

4.  Good toughness and resistance to settlement

Steel pipes have strong overall toughness and can adapt to underground soil settlement and terrain changes, making them less prone to cracking and damage.

5.  Wide applicability and high cost-effectiveness

Compared with seamless large-diameter steel pipes, it has lower cost and excellent anti-corrosion performance, and is widely used in municipal long-distance water transportation, oil and gas transportation, and sewage treatment projects.

Common anti-corrosion types

1.  3PE anti-corrosion spiral steel pipe (reinforced grade): The outer wall is coated with three layers of polyethylene for anti-corrosion, which has the best anti-corrosion effect and is commonly used for long-distance transportation of oil and natural gas.

2.  Epoxy coal tar anti-corrosion steel pipe: Moderate cost, moisture and salt alkali resistance, commonly used in municipal water supply and drainage and sewage pipe networks.

3.  Inner wall epoxy powder anti-corrosion: The inner wall is smooth and clean, hygienic and environmentally friendly, suitable for tap water and drinking water projects.
