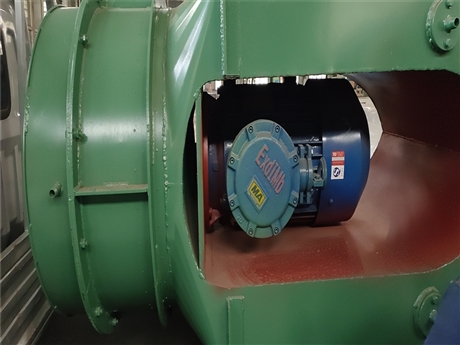

Production of KCS-150D dust removal fan for mining tunneling machine

Description :

　　Dust removal fan for mining tunneling machineKCS-150D production

　　KCS-150DVibrating wire dust removal fan, dust removal fan for tunneling machine, mining dust removal fan vibrating wire type, sales of mining dust removal fan

　　 Tai'an Yucheng produces KCS series dust removal fans, and the needs of our customers are the direction we strive for. Wet dust removal fans are our company's flagship equipment. If you have any needs, please call me. Thank you for your support. Today we will introduce the KCS-150D vibrating wire dust removal fan.

　　1、 KCS-150D wet dust removal fan features:

　　The KCS-150D mining dust removal fan integrates multiple advanced dust removal principles. Compared with other products of the same purpose, the KCS-150D mining dust removal fan has a large dust removal range. This dust removal fan has a good effect on dust particles beyond 0.5 μ m; High dust removal efficiency, stable performance, and dust removal effect does not change with working time; The KCS-150D mining dust removal fan has a large processing air volume and low energy consumption, with energy consumption less than one-third of other products for the same purpose; Compact structure, KCS-150D mining dust removal fan with small volume and light weight, convenient for use in underground mobile environments; During operation, there is no maintenance required, no consumables, and low operating costs.

　　2、 Working principle of KCS-150D vibrating wire dust removal fan:

　　KCS-150D mine dust removal fan fully mixes dust gas with humidified spray water, and dust particles of various sizes form large particles after moisture absorption and high-speed collision, and enter the cyclone density separation device at the set tangential speed; The KCS-150D mining dust removal fan is used in the cyclone density separation device. The high-speed rotating three-phase mixed gas of gas, water, and mud is stratified according to particle size and density in the centrifugal force field. The water droplets of mud and large particles are accelerated and adsorbed onto the cylinder wall before being discharged. The clean air with small water droplets is then separated into water and gas before being discharged, thus achieving air purification effect.

　　3、 Performance parameters of KCS-150D wet dust removal fan:

　　Processing air volume of 150m3/min

　　Total dust removal efficiency>99%

　　Respiratory dust removal efficiency>90%

　　KCS-150dMining wet dust removal fanLiquid gas ratio<0.2L/m3

　　The water content of the discharged gas is less than 0.01L/m3

　　Rated working resistance ＜ 300Pa

　　Motor model YBF2-132M-4

　　Rated power 7.5kW

　　380V/660V rated current 15.4A/8.8A

　　660/1140V rated current 8.8/5.2A

　　Rated speed 1440r/min

　　Explosion proof type and explosion-proof type

　　KCS-150d Mining Wet Dust Removal Fan Explosion proof Mark Exd Ⅰ

　　Working mode: continuous work system

　　Suitable for dust types: hydrophilic dust such as coal, rock, cement, iron ore dust, etc

　　Dimensions (mm) (length * width * height) 2120 * 740 * 1100

　　Total weight (kg) 440

　　KCS-150D Mining Wet Dust Removal Fan Tai'an Yucheng Mining Equipment Co., Ltd. adheres to the business philosophy of "customer first, forge ahead", insists on the principle of "customer", and provides services for our customers. Looking forward to your call.
