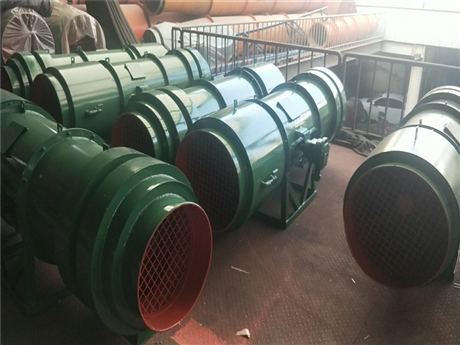

Guizhou KCS-175LL wet dust removal fan with spiral string high quality

Description :

　　Guizhou KCS-175LL wet dust removal fan with spiral string high quality

　　KCS-175LLWet dust removal fan, KCS-175LL spiral string dust removal fan, wet spiral string dust removal fan, Guizhou dust removal fan, high-quality wet dust removal fan

　　The following is an introduction to the Yucheng KCS-175LL mining wet screw string dust removal fan. Please read it carefully.

　　1、 Main technical parameters of KCS-175LL dust removal fan:

　　1. Total dust removal efficiency: ≥ 97%

　　2. Liquid ratio: ≤ 0.4L/m3.

　　3. Processing air volume of 175m3/min.

　　4. Applicable dust concentration range: C ≤ 24000mg/m3 processing air volume.

　　5. Working mode: Continuous work.

　　6. Applicable ambient temperature: 0 ℃~40 ℃.

　　7. Applicable dust types: hydrophilic dust such as coal, rock, cement, etc.

　　8. Explosion proof motor voltage: 380V/660V or 660V/1140V (specified when ordering)

　　2、 KCS-175LL dust removal fan composition:

　　KCS-175LL dust removal fan is a wet vibrating wire dust removal fan used in coal mines (hereinafter referred to as the dust removal fan), which is composed of a coal mine extraction explosion-proof local ventilation fan (hereinafter referred to as the fan) and a wet spiral wire dust collector (hereinafter referred to as the dust collector). The installed fan is an axial flow explosion-proof extraction local ventilation fan. As long as the working point design of the dust collector matches the resistance characteristics of the fan, the overall performance of the machine can be guaranteed to meet the design specifications.

　　3、 Precautions for installation of dust removal fan:

　　1. The dust removal fan must pass the inspection before leaving the factory. Before use, it is necessary to carefully read the instruction manual, refer to the precautions in the manual, check whether the whole machine is intact, and inspect the motor used according to the safety regulations for underground coal mines. Only when it meets the requirements can it be used underground. Perform a 5-minute ground power on test run to inspect and observe the firmness of each component, whether the connections are loose, and whether there are any abnormal phenomena, and record them in the file. When going into the well for on-site use, first connect the water supply spray system, open the inspection door, and observe whether the spray is normal. The spray should be able to cover the end face of the filter evenly and have a certain pressure (3kg/cm2). If the spray head is blocked, clean it.

　　2. After starting the fan for 2 minutes, pay attention to observing whether the dust collector is dehydrated normally, whether there is obvious water mist at the exhaust outlet, and whether the drainage outlet has smooth water flow.

　　3. It is strictly prohibited to operate without water spray or without installing gas power off automatic protector. The whole machine must be electrically grounded (according to the safety regulations under the coal mine).

　　The KCS-175LL wet dust removal fan from Tai'an Yucheng has high working efficiency, excellent product quality, reasonable price, and is easy to use and durable. Yucheng dust removal fans have been sold to multiple places such as Shanxi, Shaanxi, Guizhou, Inner Mongolia, etc., and have been unanimously recognized by customers. Yu Feng Fan is reliable and worth your choice.
