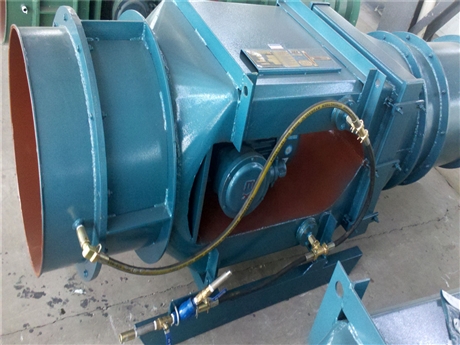

Handan KCS-410D vibrating wire wet dust removal fan with fine process

Description :

　　Handan KCS-410D vibrating wire wet dust removal fan with fine process

　　KCS-410DVibration string wet dust removal fan, KCS-410D dust removal fan, vibration string wet dust removal fan

　　1、 Technical parameters of KCS-410D vibrating wire wet dust removal fan:

　　Work resistance pa 1800

　　Processing air volume 410

　　Total dust removal efficiency% ≥ 97

　　Respiratory dust efficiency ≥ 80

　　Liquid gas ratio L/m3 ≤ 0.4

　　Power KW 37kw

　　Overall dimensions: length x width x height mm 3180 * 950 * 1200

　　Whole machine weight: 1126kg

　　2、 Working principle of KCS-410D vibrating wire wet dust removal fan

　　1. Water supply spray system 2, water quality filter 3, water inlet pipeline

　　4. Vibration string filter plate 5, dehydration device

　　KCS-410D vibrating wire wet dedusting fan fully mixes dust gas with humidified spray water. Dust particles of various sizes form large particles after moisture absorption and high-speed collision, and enter the cyclone density separation device at the set tangential speed; In the cyclone density separation device, the high-speed rotating three-phase mixed gas of gas, water, and mud is stratified according to particle size and density in the centrifugal force field. The water droplets of mud and large particles are accelerated and adsorbed onto the cylinder wall before being discharged. The clean air with small water droplets is discharged after further water gas separation, thus achieving air purification effect.

　　3、 Characteristics of KCS-410D vibrating wire wet dust removal fan:

　　1. The KCS-410D vibrating wire wet dust removal fan has a wide dust removal range, and this dust removal fan has a good effect on dust particles beyond 0.5 μ m;

　　2. High dust removal efficiency, stable performance, and dust removal effect does not change with working time

　　3. The KCS-410D vibrating wire wet dust removal fan has a large processing air volume and low energy consumption, with energy consumption less than one-third of other products for the same purpose;

　　4. Compact structure, small volume, lightweight structure, easy to use in underground mobile environments;

　　5. During operation, there is no maintenance required, no consumables, and low operating costs.

　　Tai'an Yucheng Mining Equipment Company mainly deals in dust removal fans, wet dust removal fans, mining dust removal fans, explosion-proof dust removal fans, dust removal fans for tunneling machines, dust removal fans for tunnels, dust removal fans for coal mines, wet vibration rotary dust removal fans, KCS-410D vibrating string wet dust removal fans. Welcome to purchase! (The above is not the actual price)
