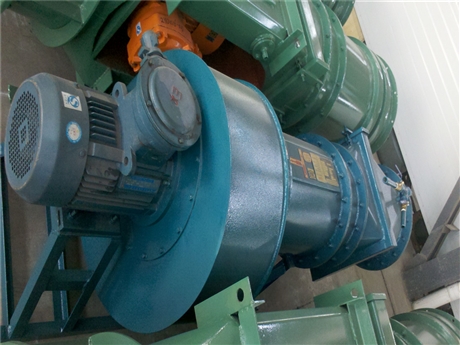

The price of the new KCS-225D dust removal fan is beautiful

Description :

　　The price of the new KCS-225D dust removal fan is beautiful

　　KCS-225DDust removal fan, coal mine dust removal fan, KCS dust removal fan, dust removal fan installation method

　　KCS-225DPrice of dust removal fan

　　KCS-225D dust removal fan is suitable for comprehensive excavation working face, and on-site purification of dust containing air during excavation operation; It can also be used in coal and rock tunnel excavation, anchor spraying working face drilling, and blasting workplaces. The dusty air is captured by a wet vibrating wire dust collector, and the dust is removed and purified on site. The purified airflow after dust removal is discharged from the outlet of the dust collector to achieve the purpose of purification. Yucheng KCS-225D dust removal fan new year, new style, new price.

　　Working principle of KCS-225D dust removal fan:

　　By using high-speed water jet injection and compressed air assisted injection from the fan, negative pressure is formed to accelerate the air flow velocity in the air duct. Gas containing a large amount of coal dust and dust is sucked into the fan duct and mixed with high-speed water mist to form a coal dust water flow that is discharged, thereby purifying and treating the dusty gas. If the KCS-180D wet dust removal fan stops using the extraction type dust removal fan, the end of the compressed air fan duct should be connected to the backup duct of the working face section to ensure that the compressed air fan supplies air to the working face normally. It is necessary to ensure that the air outlet of the positive pressure fan duct is no more than 5 meters from the working face, and the duct is hung according to the standard without any air leakage.

　　Installation method of KCS-225D dust removal fan:

　　1. The dust removal fan is equipped with support feet and suspension holes, which can be installed on the ground in the tunnel for use or suspended for use. The rotation direction of the dust removal fan impeller must conform to the direction indicated by the arrow on the casing.

　　2. The installation and use of dust removal fans must comply with the relevant provisions of the "Coal Mine Safety Regulations".

　　3. Dust removal fans that have undergone long-distance transportation or long-term storage must measure the insulation resistance of the motor stator (insulation resistance not less than 50 megaohms) before use. Only after passing the inspection can the power be turned on and tested for 10 minutes. If there is no abnormal noise, they can be put into normal operation. The dust removal fan must be operated and managed by a dedicated person.

　　4. When the dust removal fan is used underground in coal mines, a U-shaped non combustible rubber sheathed cable must be used.

　　The company mainly produces mining dust removal fans with a complete range of models, and can also customize processing according to customer requirements to meet your different needs. If needed, please contact us. (The above is not the actual price)
