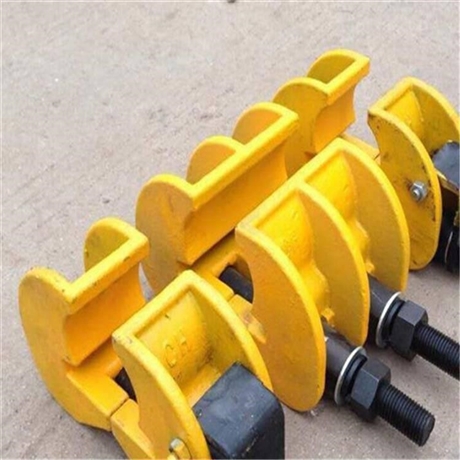

P43kg/50kg 60kg rail emergency kit model list

Description :

　　P43kg/50kg60kgComplete list of models of rail emergency equipment

　　P50kgSteel rail emergency kit, 50kg track emergency kit, P60kg railway track emergency kit, 43kg track emergency kit model list

　　The JGQ type rail emergency kit sold by Tai'an Yucheng Mining Equipment Co., Ltd. is a railway specialized equipment and repair tool. The Yucheng brand emergency kit has a complete range of models and specifications. We welcome enthusiasts to call us.

　　Introduction to JGQ type rail emergency kit:

　　JGQ type first aid device, also known as rail rail rescue device, is reliable in quality, easy to operate, widely used, safe to use, convenient and flexible in loading and unloading, firmly and reliably clamped, and easy to carry. It is a convenient and reliable emergency repair tool for railway engineering departments to temporarily rescue rail fractures.

　　2、 Usage of JGQ type rail emergency kit:

　　In emergency situations where a steel rail breaks, in order for the train to pass through normally, the corresponding model of steel rail fishplates (steel rail joint clamps) can be fastened on both sides of the broken steel rail, and the first aid device can be extended from the bottom of the steel rail to the lower part of the fishplate, so that the top surface of the first aid device is on both sides of the temporary fishplate. Two first aid devices are simultaneously attached to the joint clamp plate, with the first aid devices located 100MM from the end of the clamp plate. The emergency rescue device bolts are then locked using a quick wrench provided immediately. The train can pass normally at a lower safe speed.

　　3、 JGQ type rail emergency kit model:

　　The JGQ emergency kit is divided into 43, 50, 60, and 75 types, which correspond to the steel rail models used. When the track or rail is damaged during the interval between trains and the clamp cannot be locked in time, a rail rescue device can be used to temporarily lock the joint between the two rail clamps to ensure the normal operation of the train.

　　4、 Precautions for using rail emergency equipment:

　　1. The groove slope of the clamp must be placed on the slope at the bottom of the steel rail.

　　2. When both ends of the nut are approaching the rated torque at the same time, when using a three pair combination, tighten the nuts at both ends of the middle clamping body again and approach the rated torque at the same time.

　　3. If the locking plate cannot hold the nut, you can slightly rotate the nut (clockwise) to adjust the angle of the hex nut, and then lower the locking plate (counterclockwise adjustment of the angle of the hex nut is not allowed, lower the locking plate).

　　4. When disassembling the clamp body, loosen the nuts at both ends, but the nuts must not directly detach from the bolts to avoid the fishplate and clamp body popping out and injuring the human body.

　　5. When the nut reaches its rated torque, the bolt and nut must not be used more than 20 times.

　　This is a sustainable special business industry that several generations of us can strive for. The domestic and international markets are booming now, and we must work hard to make China's high-speed rail go global!!! Let the whole world enjoy the comfort, convenience, and services brought by China's railway industry.
