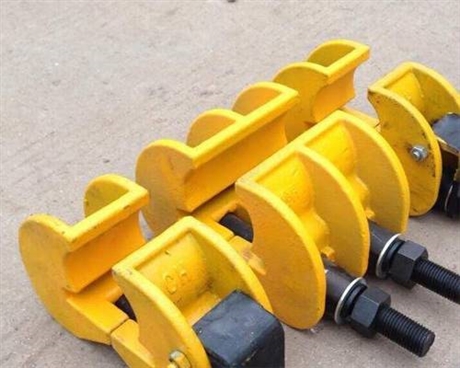

GWJ60Kg steel rail non hole clamping device 75kg steel rail clamping device installation

Description :

　　GWJ60KgInstallation of 75kg rail clamping device without holes for steel rails

　　GWJP60KgClamping device manufacturer, 75kg rail joint non hole clamping device, 75kg rail joint non hole clamping device parameters

　　Overview of GWJ type rail joint non hole clamping device:

　　The GWJ type rail joint non hole clamping device is suitable for emergency handling of rail or weld damage, as well as temporary connection of rails when laying seamless tracks. GWJ-60 and GWJ-60 (D) are suitable for temporary connection of 60kg/m rails, while GWJ-50 and GWJ-50 (D) are suitable for temporary connection of 50kg/m rails.

　　Main technical parameters of GWJ type rail joint non hole clamping device:

　　GWJ-60GWJ-60D

　　(GWJ-60 combination) GWJ-50GWJ-50D

　　(GWJ-50 combination)

　　Applicable rail specification (kg/m) 60605050

　　Rated torque (N.m) 900900850850

　　Longitudinal resistance of rail joint

　　(Install one pair) (Kn) ≥ 250-- ≥ 260--

　　Longitudinal resistance of rail joint

　　(Install two pairs) (Kn) ≥ 150 ≥ 130

　　Longitudinal resistance of rail joint

　　(Install three pairs) (Kn) ≥ 360 ≥ 350 ≥ 350 ≥ 330

　　Weight (one pair) (kg) 199.5168

　　Dismantling method of GWJ type rail joint non hole clamping device:

　　1. When disassembling the clamping body, first flip up the anti loosening plate and insert the pull-out pin to fix the anti loosening plate.

　　2. Loosen the nuts at both ends, but the nuts must not detach from the bolts.

　　3. Tap the fishplate and the side of the clamp, loosen the nuts at both ends after the clamp becomes loose, and remove the clamp.

　　Note: GWJ-60SD is used for emergency response at small intervals (35-50) mm between ballastless track beds in high-speed trains and subways.

　　This product has been exported to multiple countries including the United States, France, Canada, Indonesia, Russia, Vietnam, Australia, South Korea, Iran, etc., and has received unanimous praise from domestic and foreign market customers. This is a sustainable special business industry that several generations of us can strive for. Nowadays, the domestic and international markets are booming, and we must work hard to make China's high-speed rail go global!!! Let the whole world enjoy the comfort, convenience, and services brought by China's railway industry.
