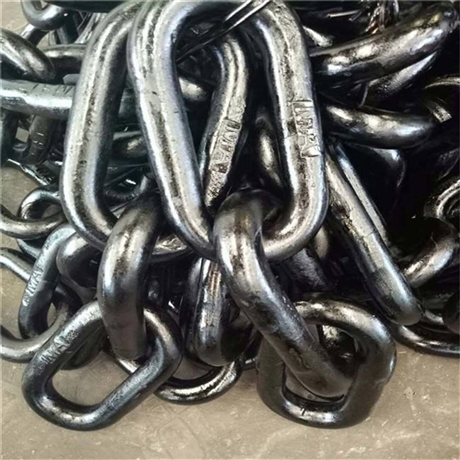

Diameter 38 welded three ring chain, Yucheng direct sales flatbed truck three ring chain

Description :

　　diameterthirty-eightWelding three ring chain Yucheng direct sales Three ring chain for flatbed truck

　　diameterthirty-eightWelding the three ring chain, welding the three ring chain,38mmWelding three ring chain, flatbed three ring chain

　　A 38 diameter welded three ring chain is an important accessory for connecting mining flatbed trucks, mining material trucks, and other mining vehicles. Frequent use and significant wear and tear make daily maintenance important. Please pay attention to the following points:

　　1、 Daily maintenance measures for 38 diameter welded three ring chain:

　　1. After the three ring chain with a diameter of 38 is severely worn, a new sprocket and chain should be replaced simultaneously to ensure good meshing. The 38 diameter three ring chain welded for mining cannot be replaced with a new chain or sprocket alone. Otherwise, it will cause poor meshing and accelerate the wear of new chains or sprockets. After the sprocket tooth surface is worn to a certain extent, it should be flipped over for use in a timely manner to extend its service life

　　2. The three ring chain with a diameter of 38 welded three ring chain is lifted or pressed down from the middle of the chain, and the center distance between the two sprockets is about 2% -3%. The new lifting chain is too long or stretched after use, making it difficult to adjust. The chain links can be removed depending on the situation, but they must be even. The chain link should pass through the back of the chain, the locking plate should be inserted outside, and the opening of the locking plate should face in the opposite direction of rotation.

　　4. The three ring chain with a diameter of 38 and welded with a three ring chain is not allowed to have friction on the side of the sprocket teeth. If the two wheels are moved too much, it is easy to cause chain detachment and accelerated wear. When replacing the sprocket, it is necessary to pay attention to checking and adjusting the offset.

　　Tai'an Yucheng can customize a mining welding three ring chain with a diameter of 38 according to your requirements. It should be noted that there will be normal dimensional deviations, with a diameter of φ 38+1/-0.5 pitch+5/-5 inner width+2/-2. The forging surface of the ring should be smooth, not over burned, without cracks, with a burr height of no more than 1mm, a concave depth of no more than 1mm after grinding the heavy skin and scars, and a mismatch modulus of no more than 1mm. The diameter of the long ring welding point should not be less than the diameter of the rod material, nor should it be greater than 115% of the actual rod material diameter. The weld should be in the straight part of the chain ring, and the welding surface should be smooth. There should be no defects such as pores, slag inclusions, cracks, etc. at the weld joint.

　　All raw materials used in our company's production are certified and undergo testing before each batch of production. Only after the materials are qualified can we arrange for mass production. We win by quality and have a complete range of products. We look forward to working with you.

AfterSalesService :

• 38 diameter welded three ring chain
