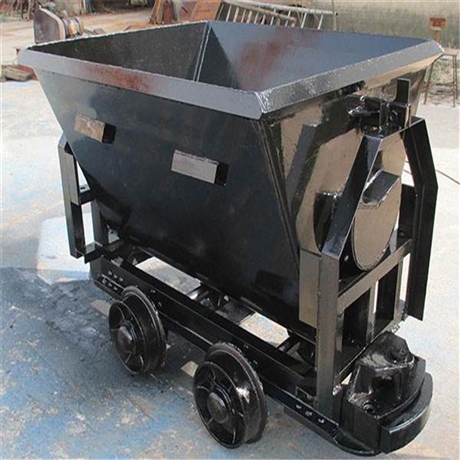

Structural analysis of KFU0.75 tipping bucket mining car U-shaped tipping bucket mining car

Description :

　　KFU0.75-6Structural analysis of dump truck UType dump truck

　　KFU0.75-6Dump truck,KFU0.75-6Dump truck structure,UType dump truck,

　　six hundredTrack gauge dump truck

　　1、 KFU0.75-6 dump truck model representation:

　　The KFU0.75-6 dump truck consists of a carriage, frame, open wheelsets, connecting pins, connecting chains, flipping rails, buffering devices, axle clamps, etc.

　　3、 KFU0.75-6 dump truck frame description:

　　The frame of the Yuchengjia KFU0.75-6 tipping bucket mining car is a metal structure that can withstand traction force, automatic force, collision force between mining cars, and rail impact force. It is made of channel steel. Welding components such as headrests and axle clamps.

　　1. The profile steel used for the KFU0.75-6 dump truck frame should be straightened before riveting and welding, and its straightness should not exceed 1.5 ‰. After the frame is made, the two pairs of edges should be parallel to each other, with a parallelism tolerance of 2 ‰ of the side length and a flatness tolerance of 2 ‰ of the frame length (excluding buffer), but not greater than 5mm.

　　2. After the KFU0.75-6 dump truck frame is made, the support surfaces of the four axle frames should be on the same plane, and the center surfaces of the two axle frames on the same axis should be perpendicular to the longitudinal center surface of the frame. The difference between the center lines of the two axle frames (axle clamps or axle frame guides with vertical buffer springs) on the same side of the KFU0.75-6 dump truck frame and the center lines of the two axle frames on the opposite side shall not exceed 2mm; the difference between the distances between the two diagonal axle frames shall not exceed 3mm.

　　3. The center plane of the KFU0.75-6 dump truck frame traction device should be symmetrical to the longitudinal center plane of the frame, with a symmetry tolerance of no more than 6mm.

　　4. The flipping frame should be installed symmetrically on the longitudinal center plane of the chassis, and the inner side of the flipping frame should be perpendicular to the horizontal plane of the chassis

　　The straightness tolerance is 5 ‰ of the height of the flipping frame, and the inner surfaces of the two flipping frames should be parallel to each other, with a parallelism tolerance of 3mm.

　　The cross-section of the KFU0.75-6 dump truck box is U-shaped, supported on the flipping track of the frame, and the box is flipped and unloaded on the flipping track. KFU0.75-6 dump truck is used in mines or construction sites to transport crushed block materials. For example, minerals, coal, stones, etc. The KFU0.75-6 dump truck has a simple structure, is sturdy and durable, is easy to use, and can easily unload materials by simply manually opening the stop plate. The wheel axle adopts roller bearings, which effectively reduce the running resistance and can be pushed manually.
