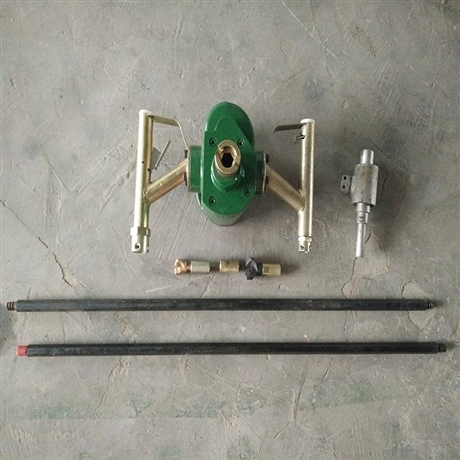

Tai'an Yucheng ZQS-35/1.6S pneumatic handheld drilling rig is durable and long-lasting
Category:
metallurgy/Mining construction equipment/Drilling and production equipment
Model:
ZQS-35/1.6S
Brand:
Tai'an Yucheng
Retail Price
650.00USD
重量
kg
- Product Description
-
Description :
Tai'an YuchengZQS-35/1.6SPneumatic handheld drilling rig is durable and long-lasting
ZQS-35/1.6SPneumatic handheld drilling rig,ZQS-35/1.6SWind coal drill,ZQSPneumatic handheld drilling rig, sales of pneumatic handheld drilling rig, production of pneumatic handheld drilling rig
The ZQS-35/1.6S gas hand-held drilling rig is a handheld and gas leg dual-purpose rotary pneumatic coal drill used in coal mines and construction projects for drilling coal seams, soft sandstones, shale, etc. Both wet and dry drilling can be used. The following is an introduction to the ZQS-35/1.6S pneumatic handheld drilling rig.
1、 Characteristics of ZQS-35/1.6S pneumatic handheld drilling rig:
Small size, light weight, easy operation, and convenient maintenance. Gear type pneumatic motor, stable operation, high reliability. Safe and explosion-proof, with a reasonable structure and strong adaptability.
2、 ZQS-35/1.6S Pneumatic Handheld Drilling Machine Parameter Table:
3、 Working principle of ZQS-35/1.6S pneumatic handheld drilling rig:
1. Compressed air enters the anchor drilling rig through a filter, oil injector, and filter screen
2. Open the motor control valve, compressed air drives the gear motor, and through gear reduction, drives the spindle to rotate clockwise, adjusting the working state of the handle control motor.
3. Open the water valve during wet drilling, and the flushing water will enter the drill rod through the filter screen, water pipe, and spindle inner hole to flush the borehole. Adjust the opening amount of the water valve to adjust the water volume.
The ZQS-35/1.6S pneumatic hand-held drilling rig is suitable for coal support anchor bolt support operations in coal tunnels and semi coal tunnels with rock hardness ≤ f6. It can drill anchor bolt holes, mix and install resin coated anchor bolts. Tai'an Yucheng pneumatic drilling rig is provided for you.
