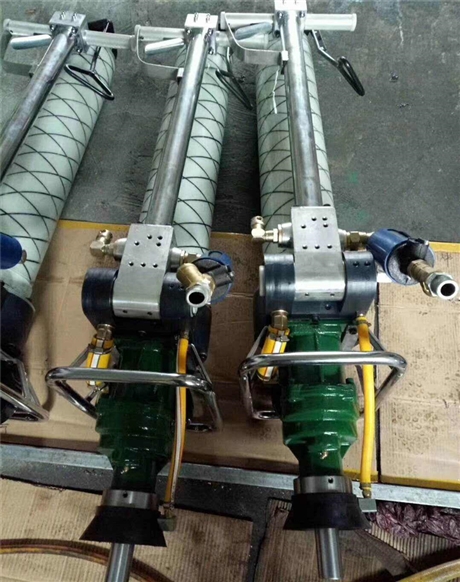

Pneumatic Anchor Drill MQT-110/2.4 Anchor Drill Accessories Production Plant

Description :

　　Pneumatic anchor drilling rigMQT-110/2.4Anchor rod drilling machine accessories production factory

　　MQT-110/2.4Pneumatic anchor drilling rig for coal mines,MQTAnchor drilling rig accessories,MQT-110/2.4Price of pneumatic anchor drilling rig for coal mines

　　Tai'an Yucheng Mining Equipment Co., Ltd. produces and sells various types of pneumatic anchor bolt drilling machines. Our company solemnly promises: quality assurance and technical service commitment. The equipment design, manufacturing, and testing verification strictly comply with relevant specifications and standards, and meet the requirements proposed in the specification book. The equipment provided by our company ensures that on-site testing and debugging can achieve the required performance and reliability. The equipment provided by our company meets the requirements of user safety and reliable operation, and we are fully responsible for the entire process of equipment design, manufacturing, supply, testing, packaging, shipping, on-site debugging, etc.

　　The MQT-110/2.4 pneumatic anchor rod drilling rig has low cost, simple main engine power, and low energy consumption. People will continue to focus on improving the reliability of electric anchor rod drilling rigs and solving the problem of reasonable support leg methods. Given the hard torque characteristics and poor motor reliability of electric anchor bolt drilling machines, the key to motor reliability when using pressure water to flush anchor bolt holes will lie in overload capacity, waterproofing, and sealing performance; Only after both are fundamentally resolved can electric anchor drills be more widely used for underground operations.

　　MQT-110/2.4 Pneumatic Anchor Drill Performance Parameters:

　　Working pressure Mpa 0.4-0.63

　　Rated air pressure Mpa 0.5

　　Rated speed r/min 220

　　Rated torque N.m 110

　　Stall torque N.m 210

　　No load speed r/min ≥ 560

　　Gas consumption m3/min 4

　　High thrust KN 8

　　Flushing water pressure Mpa 0.6-1.2

　　Noise dB (A) ≤ 95

　　Drill tail hexagonal size mm 19:22

　　Anchor bolt machine series specification number MQT-110/2.5-A MQT-110/2.5-B MQT-110/2.5-C

　　Overall height mm 2457 ± 50 3057 ± 50 3657 ± 50

　　Small height of the whole machine mm 1126 ± 50 1276 ± 50 1426 ± 50

　　Whole machine weight Kg 50 53 55

　　The above is the introduction of Yucheng MQT-110/2.4 pneumatic anchor drilling rig. We can also provide anchor drilling rig accessories. Please feel free to call us if you need them. Yucheng is dedicated to serving you.
