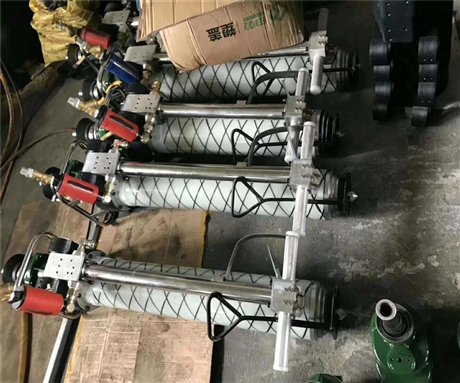

Shanxi Pneumatic Anchor Drilling Machine MQT-130/3.0 in stock for sale

Description :

　　Shanxi Pneumatic Anchor Drilling MachineMQT-130/3.0sell

　　MQT-130/3.0Pneumatic anchor bolt drilling machine for coal mines, mining leg anchor bolt drilling machine, salesMQT-130/3.0Mining pneumatic anchor drill

　　MQT-130/3.0 anchor drilling rig, also known as anchoring drilling rig in some places, is a drilling tool used in coal mine roadway anchor support work. It has outstanding advantages in improving support effectiveness, reducing support costs, accelerating tunnel completion speed, reducing auxiliary transportation volume, reducing labor intensity, and improving tunnel section utilization. Anchor rod drilling rig is a key equipment for anchor rod support, which affects the quality of anchor rod support - the accuracy of the orientation, depth, and diameter of anchor rod holes, as well as the installation quality of anchor rods, and also involves the personal safety, labor intensity, and working conditions of operators.

　　One MQT-130/3.0 Coal Mine Pneumatic Anchor Drilling Machine Features:

　　1. The degree is made of engineering plastic materials, which are lightweight and easy to operate.

　　2. Powered by a large-sized motor, it has a higher power to weight ratio and a longer service life.

　　3. Parameter matching is more reasonable, and the drilling rig achieves maximum output power near the optimal drilling speed.

　　4. The propulsion part adopts a new type of fiberglass cylinder, which is safe, explosion-proof, lightweight and flexible.

　　5. A new type of water valve using patented technology that can adapt to the high surface static pressure water in coal mines.

　　6. Adopting a new type of exhaust silencing device greatly reduces the noise of the drilling rig and improves the working environment underground.

　　II MQT-130/3.0 Pneumatic Anchor Rod Drilling Machine for Coal Mines Performance Parameters:

　　Working pressure Mpa 0.4-0.63

　　Rated air pressure Mpa 0.5

　　Rated speed r-min 206

　　Rated torque N.m 130

　　Stall torque N.m 220

　　No load speed r-min ≥ 560

　　Gas consumption m3 min 4.5

　　*High thrust KN 8

　　Flushing water pressure Mpa 0.6-1.2

　　Tai'an Yucheng produces various rock drilling equipment with complete models, guaranteed quality, and reasonable prices. Our company adheres to the basic principle of "quality as steel, honesty as the foundation", and "honesty and trustworthiness, striving for excellence" as our business philosophy. We are willing to cooperate sincerely with people of all walks of life, work together, and create a brilliant tomorrow.
