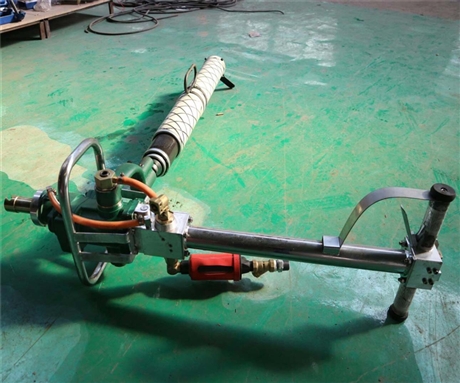

MQTB-80/2.4 Leg type Anchor Rod Drilling Machine with Quality Assurance
Category:
metallurgy/Mining construction equipment/Drilling and production equipment
Model:
MQTB-80/2.4
Brand:
Tai'an Yucheng
Retail Price
1,400.00USD
重量
kg
- Product Description
-
Description :
MQTB-80/2.4The quality of the leg type anchor drilling rig is guaranteed
MQTB-80/2.4Pneumatic leg type anchor bolt drilling rig for coal mines, pneumatic leg type anchor bolt drilling rig,MQTBSeries leg type anchor drilling rig
MQTB-80/2.4 Pneumatic Leg type Anchor Rod Drilling Machine Introduction:
The MQTB-80/2.4 pneumatic support leg anchor bolt drilling rig is widely used for coal roadway and semi coal roadway anchor bolt support operations with rock hardness ≤ f8. It can drill anchor bolt holes and anchor bolt holes, as well as mix and install resin coated coil anchor bolts and anchor cables. No other equipment is required to achieve one-time installation and tightening of anchor bolt nuts, meeting the requirements of initial anchor pre tightening force.
MQTB-80/2.4 Pneumatic Leg Anchor Drilling Machine Parameters:
Working pressure
Mpa
0.4-0.63
rated pressure
Mpa
zero point five
rated speed
r/min
two hundred and forty
rated torque
N.m
eighty
stall torque
N.m
one hundred and eighty-five
no-load speed
r/min
≥ 600
air consumption
m3/min
four
*High thrust
KN
four
Rinse water pressure
Mpa
0.6-1.2
noise
dB(A)
≤ 95
Whole machine * large height
mm
3170±50
Whole machine * small height
mm
1165±50
Total weight
Kg
forty-six
MQTB-80/2.4 Pneumatic Leg type Anchor Rod Drilling Machine Operation Method:
1. Move the rotary knob with your right hand to connect the flushing water circuit.
2. Gradually rotate the control knob towards the "open" position with your left hand, and extend your air leg. When rotated to the "closed" position, the air leg retracts by descending under its own weight (note: when descending, the drilling rig descends quickly, and attention should be paid to standing firm, stabilizing the drilling rig, and preventing the drill rod from falling off).
3. The rotation of the drilling rig is controlled by a handle switch, and the more pressure is applied, the faster the rotation speed of the drilling rig; Release the switch to automatically stop rotating and reset to the closed position.
The MQTB-80/2.4 pneumatic leg type anchor drilling rig has the advantages of small size, light weight, simple operation, and easy maintenance. When the motor starts, it can stabilize at the set point. Gear type pneumatic motor, stable operation, high reliability. The new fiberglass air leg design is safe, explosion-proof, and has a longer service life. The quality of Yucheng pneumatic leg type anchor drilling rig is guaranteed.
