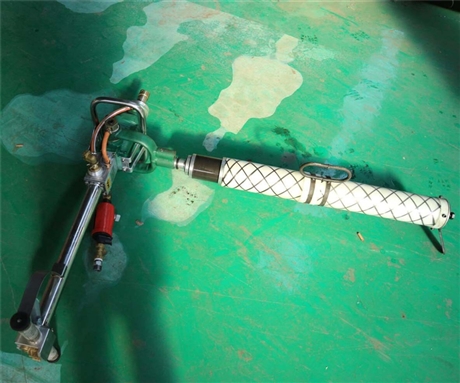

Manufacturer supplied MQTB-85/2.0 pneumatic support leg anchor drilling rig
Category:
metallurgy/Mining construction equipment/Drilling and production equipment
Model:
MQTB-85/2.0
Brand:
Tai'an Yucheng
Retail Price
1,000.00USD
重量
kg
- Product Description
-
Description :
Manufacturer's direct pneumatic support leg anchor drilling rigMQTB-85/2.0
MQTB-85/2.0Pneumatic leg type anchor drilling rig,MQTBPneumatic leg type anchor drilling rig for coal mines,MQTB-85/2.0Price of pneumatic support leg anchor drilling rig for coal mines
Tai'an Yucheng Mining Equipment Co., Ltd. adheres to the business philosophy of excellent quality, complete products, multiple varieties, complete specifications, reasonable prices, and thoughtful service. We insist on providing products for our customers and welcome new and old customers to come and inquire. MQTB-85/2.0 Pneumatic Leg Anchor Drilling Machine Let's learn about it together
1、 MQTB-85/2.0 Pneumatic Support Leg Anchor Rod Drilling Machine for Coal Mines Product Features:
Small size, light weight, easy operation, and convenient maintenance. When the motor starts, it can stabilize at the set point. Gear type pneumatic motor, stable operation, high reliability. The new fiberglass air leg design is safe, explosion-proof, and has a longer service life.
2、 MQTB-85/2.0 Pneumatic Support Leg Anchor Drilling Machine for Coal Mines Parameters:
Working pressure
Mpa
0.4-0.63
rated pressure
Mpa
zero point five
rated speed
r/min
two hundred and forty
rated torque
N.m
eighty
stall torque
N.m
one hundred and eighty-five
no-load speed
r/min
≥ 600
air consumption
m3/min
four
*High thrust
KN
four
Rinse water pressure
Mpa
0.6-1.2
noise
dB(A)
≤ 95
Whole machine * large height
mm
3170±50
Whole machine * small height
mm
1165±50
Total weight
Kg
forty-six
3、 MQTB-85/2.0 Operation method of pneumatic support leg anchor drilling rig for coal mines:
1. Move the rotary knob with your right hand to connect the flushing water circuit.
2. Gradually rotate the control knob towards the "open" position with your left hand, and extend your air leg. When rotated to the "closed" position, the air leg retracts by descending under its own weight (note: when descending, the drilling rig descends quickly, and attention should be paid to standing firm, stabilizing the drilling rig, and preventing the drill rod from falling off).
3. The rotation of the drilling rig is controlled by a handle switch, and the more pressure is applied, the faster the rotation speed of the drilling rig; Release the switch to automatically stop rotating and reset to the closed position.
Yucheng Pneumatic Leg type Anchor Rod Drilling Machine is our main product, including MQT-120/2.8 Coal Mine Pneumatic Anchor Rod Drilling Machine models; MQT-130/3.2 coal mine gas hand-held drilling rig; MQT-120/2.2 Pneumatic Anchor Rod Drilling Machine for Coal Mines; MQT-130/3.0 Pneumatic Anchor Rod Drilling Machine for Coal Mines; MQT-110/2.4 coal mine gas hand-held drilling rig; MQTB-60/1.5 pneumatic leg type anchor drilling rig; MQTB-80/2.4 Pneumatic Leg type Anchor Rod Drilling Machine for Coal Mines; MQTB-120/2.5 pneumatic leg type anchor drilling rig; MQTB-130/2.8 Pneumatic Leg type Anchor Rod Drilling Machine for Coal Mines; MQTB-85/2.0 Pneumatic Leg type Anchor Rod Drilling Machine for Coal Mines; MQTB-80 pneumatic support leg anchor drilling rig for coal mines, with a complete range of types and supply.
