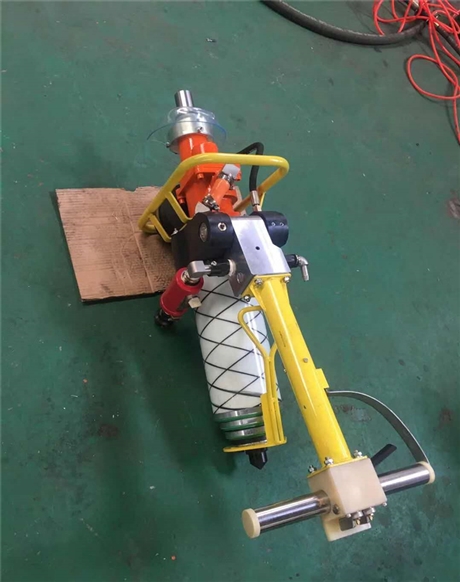

MQT-110/2.4 Pneumatic Anchor Rod Drilling Machine for Coal Mines with Low Price and Good Quality

Description :

　　Pneumatic anchor drilling rig for coal minesMQT-110/2.4Low price, good quality

　　MQT-110/2.4Pneumatic anchor drilling rig for coal mines, LinfenMQT-110/2.4Coal mine pneumatic anchor drilling rig, mining pneumatic anchor drilling rig price

　　Tai'an Yucheng Mining Equipment Co., Ltd. specializes in various types of rock drilling equipment, including ZQS series coal mine pneumatic hand-held drilling machines, ZQHS series coal mine pneumatic hand-held drilling machines, MQT series pneumatic anchor drilling machines, MQTB series pneumatic support leg anchor drilling machines, KMQTB series pneumatic support leg vibration anchor drilling machines, YS series hydraulic handheld anchor drilling machines, ZM series coal-fired drilling machines, ZMS series wet coal-fired drilling machines, YT series coal mine pneumatic leg rock drilling machines, YGZ90 guide rail rotary rock drilling machines, YN series internal combustion rock drilling machines, etc. The variety is complete, the quality is low, and we provide comprehensive technical support from pre-sales, sales, and after-sales. Welcome new and old customers from all walks of life to make purchases.

　　1、 Characteristics of MQT-110/2.4 Pneumatic Anchor Rod Drilling Machine for Coal Mines:

　　Small size, light weight, easy operation, and convenient maintenance. Gear type pneumatic motor, stable operation, high reliability. The new fiberglass air leg design is safe, explosion-proof, and has a longer service life.

　　2、 MQT-110/2.4 Pneumatic Anchor Rod Drilling Machine for Coal Mines Main Technical Parameters:

　　Working pressure Mpa 0.4-0.63

　　Rated air pressure Mpa 0.5

　　Rated speed r/min 220

　　Rated torque N.m 110

　　Stall torque N.m 210

　　No load speed r/min ≥ 560

　　Gas consumption m3/min 4

　　*High thrust KN 8

　　Flushing water pressure Mpa 0.6-1.2

　　Noise dB (A) ≤ 95

　　Drill tail hexagonal size mm 19:22

　　Whole machine * Large height mm2457 ± 50 3057 ± 50 3657 ± 50

　　Whole machine * Small height mm1126 ± 50 1276 ± 50 1426 ± 50

　　Whole machine weight Kg 50 53 55

　　According to the analysis of domestic and foreign anchor bolt drilling machines, the development trend of anchor bolt drilling machines for coal mines will have the following characteristics:

　　1) Due to the widespread application of coal mine anchor support in coal and semi coal rock tunnels with large quantities, MQT-110/2.4 pneumatic anchor drilling rig will be the mainstream of anchor drilling rig product development for a considerable period of time. In some tunnels that use integrated tunneling machines, hydraulic single type anchor drills will gradually be adopted, and the hydraulic power source of the tunneling machines will be shared. To further improve the mechanization level of anchor support for comprehensive excavation equipment, we will continue to explore how to widely use airborne anchor drilling machines. In the excavation of large section rock tunnels, the use of hydraulic drilling vehicles will further demonstrate their superiority in drilling anchor holes and installing anchor rods, while the application of dedicated anchor drilling vehicles will not be put on the agenda in the short term.

　　(2) The hydraulic rotary anchor drilling rig will develop towards further increasing the output torque to meet the needs of high-speed drilling of anchor holes and installation of anchor rods. The hydraulic anchor drilling rig will further improve its technical performance while enhancing reliability, with a focus on addressing the durability of hydraulic components and long-term stability of underground operations, and seeking ways to share power sources with existing underground equipment. In order to make the drilling of hydraulic anchor bolt holes more adaptable, people will explore the problem of high torque rotation combined with low-energy impact drilling of anchor bolt holes.

　　(3) Pneumatic anchor drilling rig has good torque speed characteristics, light weight, and high stall torque, but product reliability and quality stability will be more concerned for a period of time. In order to widely use the MQT-110/2.4 pneumatic anchor drilling rig, the coal mine site will consciously adjust the compressed air system and gradually pay attention to the application of underground mobile air compressors.
