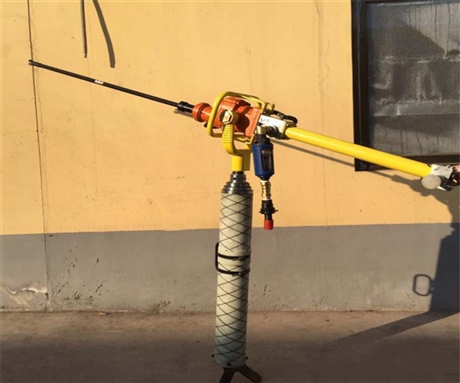

Introduction to MQTB-130/2.8 Pneumatic Support Leg Anchor Drilling Machine
Category:
metallurgy/Mining construction equipment/Drilling and production equipment
Model:
MQTB-130/2.8
Brand:
Tai'an Yucheng
Retail Price
1,450.00USD
重量
kg
- Product Description
-
Description :
Pneumatic leg type anchor drilling rigMQTB-130/2.8Explanation and Introduction
MQTB-130/2.8Pneumatic leg type anchor bolt drilling rig for coal mines, pneumatic leg type anchor bolt drilling rig for coal mines,MQTB-130/2.8drilling rig
MQTB-130/2.8 Operation method of pneumatic support leg anchor drilling rig for coal mines:
1. Move the rotary knob with your right hand to connect the flushing water circuit.
2. Gradually rotate the control knob towards the "open" position with your left hand, and extend your air leg. When rotated to the "closed" position, the air leg retracts by descending under its own weight (note: when descending, the drilling rig descends quickly, and attention should be paid to standing firm, stabilizing the drilling rig, and preventing the drill rod from falling off).
3. The rotation of the drilling rig is controlled by a handle switch, and the more pressure is applied, the faster the rotation speed of the drilling rig; Release the switch to automatically stop rotating and reset to the closed position.
MQTB-130/2.8 Coal Mine Pneumatic Support Leg Anchor Drilling Machine Parameter Diagram:
Working pressure
Mpa
0.4-0.63
rated pressure
Mpa
zero point five
rated speed
r/min
two hundred and forty
rated torque
N.m
eighty
stall torque
N.m
one hundred and eighty-five
no-load speed
r/min
≥ 600
air consumption
m3/min
four
*High thrust
KN
four
Rinse water pressure
Mpa
0.6-1.2
noise
dB(A)
≤ 95
Whole machine * large height
mm
3170±50
Whole machine * small height
mm
1165±50
Total weight
Kg
forty-six
Our company is a private enterprise mainly engaged in the design, development, production, and sales of large and small equipment for coal mines. Our products have been widely used in more than 100 coal mines in ten major mining areas, including Shenhua Group, Yanzhou Coal Industry, Datong Mining, Zaokuang Group, Xinwen Mining Group, Yongmei Group, Coking Coal Group, Pingdingshan Coal Mining Group, Jingyuan Coal Industry, etc., and have achieved important results. If you need detailed information, you can contact us by phone or QQ.
