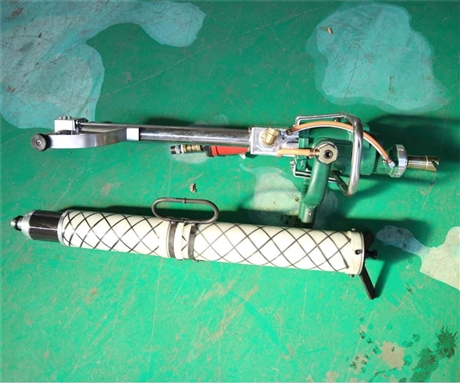

Shaanxi Pneumatic Leg Support Anchor Drilling Machine MQTB-120/2.5 in Stock

Description :

　　Shaanxi Pneumatic Leg type Anchor Rod Drilling MachineMQTB-120/2.5

　　MQTB-120/2.5Pneumatic leg type anchor drilling rig, pneumatic leg type anchor drilling rig,MQTBSeries leg type anchor drilling rig

　　The MQTB-120/2.5 pneumatic support leg anchor drilling rig from Yucheng Mining has the advantages of light weight, flexible and convenient operation; Encountering low, high torque; Stepless speed regulation, fast drilling speed, and fast leg retraction; Simple structure and easy maintenance.

　　1、 MQTB-120/2.5 Pneumatic Leg Anchor Drilling Machine Function:

　　MQTB-120/2.5 pneumatic support leg anchor drilling rig establishes and improves a long-term mechanism for preventing and controlling geological disasters, ecological restoration, and compensation for damages in mines. The MQTB-120/2.5 pneumatic support leg anchor drilling rig is involved in mining areas, and geological disaster prevention and control compensation standards, land compensation standards, labor and environmental pollution supervision systems for MQTB-120/2.5 pneumatic support leg anchor drilling rig, pollution level identification and compensation standards are formulated according to the actual situation in each region. Rules and regulations are formed to timely and properly handle relevant issues, effectively avoiding disputes and conflicts.

　　2、 MQTB-120/2.5 Pneumatic Leg Anchor Drilling Machine Main Parameters:

　　Working pressure Mpa 0.4-0.63

　　Rated air pressure Mpa 0.5

　　Rated speed r/min 240

　　Rated torque N.m 80

　　Stall torque N.m 185

　　No load speed r/min ≥ 600

　　Gas consumption m3/min 4

　　High thrust KN 4

　　Flushing water pressure Mpa 0.6-1.2

　　Noise dB (A) ≤ 95

　　The overall height of the machine (from the support seat to the horizontal centerline of the drill pipe sleeve) is 3170 ± 50 mm

　　Small height of the whole machine (from the support seat to the horizontal centerline of the drill pipe sleeve) mm 1165 ± 50

　　Whole machine weight Kg 46

　　III 、 MQTB-120/2.5 Pneumatic Leg Anchor Drilling Machine Operation Safety Precautions:

　　1. Operators must undergo training and be familiar with the performance, structure, operation methods, and safety precautions of the drilling rig before they can operate it.

　　2. Carefully inspect the drilling location and surrounding environment to ensure the stability of the roof and coal (rock) support to ensure work safety.

　　3. The operator should wear clothes, a safety helmet, and tie the cuffs to prevent hooking and entanglement of rotating parts.

　　4. The stable drilling rig should be as perpendicular to the top plate as possible, and hard materials should not be lined under the drilling rig.

　　5. Check whether the trachea and water pipes meet the elongation requirements to avoid obstacles such as hose jamming, hanging, and pressure.

　　6. When operating the drilling rig, stand behind the rig, on the left side of the operating rod, stabilize the rig, and strictly prohibit touching and rotating the drill rod with your hands.

　　When the drilling rig stops at full load, a large counter torque will be generated, causing the operating arm to swing to the right (the operator must stand on the left side of the operating rod behind the drilling rig). It is necessary to firmly grasp the drilling rig to prevent injury from squeezing. When the drilling rig contracts, it is strictly prohibited to hold it against the air leg.

　　Yucheng MQTB-120/2.5 pneumatic support leg anchor drilling rig and other models of support leg anchor drilling rig have been sold to major coal mines in Shanxi, Shaanxi, Guizhou, Inner Mongolia, Gansu, Sichuan, Hunan, Hubei and other provinces, and have been widely recognized. We look forward to your inquiry.
