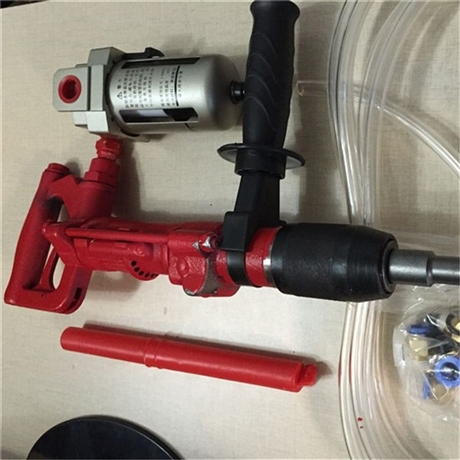

Tai'an Yucheng Pneumatic Impact Drill QCZ-1 Handheld Impact Drill Sales

Description :

　　Tai'an Yucheng Pneumatic Impact DrillQCZ-1 Handheld impact drill sales

　　QCZ-1Pneumatic impact drill, pneumatic impact drill,QCZ-1Pneumatic impact drill price

　　The QCZ-1 pneumatic impact drill is a lightweight and agile small pneumatic tool with the functions of impact rotation, simple impact, and clockwise rotation. This product has the characteristics of pneumatic, explosion-proof, spark free, and good safety performance

　　1、 Working principle of QCZ-1 pneumatic impact drill:

　　The compressed air enters the cylinder through the connecting pipe joint of the trachea and the pressure handle for air volume adjustment, and then is adjusted by the push rod to achieve impact rotation or simple impact, thereby achieving the effect of impact or rotation.

　　2、 Parameters of QCZ-1 pneumatic impact drill:

　　Dimensions: 366 × 185 × 76mm

　　Gas supply pressure: 0.5-0.7 Mpa

　　Specification of drill bits: φ 8, φ 12, φ 16, φ 18, φ 22, and φ 24

　　Large drilling depth: 300mm

　　Impact energy: ≥ 2.5J

　　Impact frequency: ≥ 48Hz

　　No load speed: 200r/min

　　Gas consumption: ≤ 121/s

　　3、 The location and composition of QCZ-1 pneumatic impact drill:

　　Pneumatic impact drills are mainly used for installing pipelines on rocks, brick walls, concrete and other components, setting up power lines, installing anchor bolts, chemical plants, refineries, buildings, heavy industries, dangerous and humid tunnels, underwater and narrow space operations; Especially in high gas explosion-proof mines, pneumatic explosion-proof without sparks can better reflect its safety.

　　4、 Maintenance and upkeep of QCZ-1 pneumatic impact drill:

　　(1) Regularly replace the carbon brush and check the spring pressure of the QCZ-1 impact drill by an electrician.

　　(2) Ensure the overall integrity, cleanliness, and removal of dirt of the impact drill body to ensure smooth movement and rotation of the impact drill.

　　(3) Regularly inspect the components of the electric drill by personnel to ensure they are not damaged, and replace those that are severely damaged and no longer usable in a timely manner.

　　(4) Timely supplement the QCZ-1 impact drill body screws and fasteners lost during the operation.

　　(5) Regularly check whether the bearings, gears, and cooling blades of the transmission part are flexible and intact, and add lubricating oil to the rotating parts in a timely manner to extend the service life of the hand drill.

　　(6) After use, the hand drill should be promptly returned to the tool library for proper storage.

　　Tai'an Yucheng Mining Equipment Co., Ltd. adheres to the business philosophy of excellent quality, complete products, multiple varieties, complete specifications, reasonable prices, and thoughtful service. We insist on providing products for our customers and welcome new and old customers to come and inquire.
