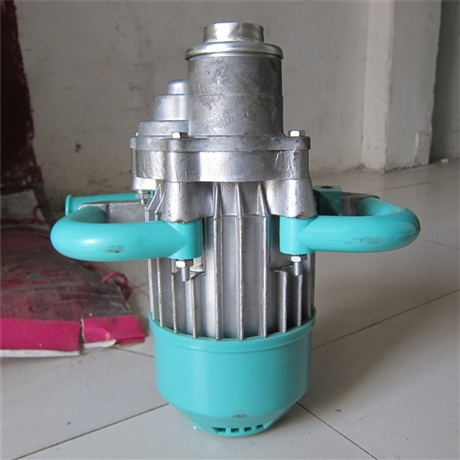

Yucheng Explosion proof Handheld Coal fired Drill ZMS12 Wet Coal fired Drill

Description :

　　Yucheng Explosion proof Handheld Coal fired DrillZMS12Wet coal drill

　　ZMS12Explosion proof handheld coal drill, explosion-proof handheld coal drill,ZMS12Explosion proof handheld coal drill price

　　1、 Introduction to ZMS12 Explosion proof Handheld Coal fired Drill:

　　ZMS12 Explosion proof Handheld Coal fired Drill is a handheld direct start explosion-proof electric rotary drilling rig with the explosion-proof mark ExdIMb. Suitable for drilling holes in medium hard and hard coal seams during mining and excavation work in mines with methane and coal dust hazards.

　　2、 ZMS12 Explosion proof Handheld Coal Drill Operating Environment:

　　1. The altitude shall not exceed 1000m;

　　2. The ambient air temperature does not exceed 40 ℃;

　　3. Relative humidity of the surrounding air (95 ± 3)% RH (at 25 ℃);

　　4. The surrounding air contains * * gases such as methane and coal dust.

　　3、 Technical parameters of ZMS12 explosion-proof handheld coal drill:

　　Rated power: 1.5kw

　　Voltage: 127V

　　Current: 10.5A

　　Frequency: 50Hz

　　Speed: 2820r/min

　　Number of phases: 3

　　Drilling diameter: 38-45mm

　　Size: 340 * 318 * 220

　　Weight: ≤ 16kg

　　4、 Precautions for using ZM12 explosion-proof handheld coal drill:

　　1. When wiring, pay attention to pressing the terminal block clockwise inward to avoid damaging the four wires

　　2. During operation, attention should be paid to the working conditions of the motor, reducer, and fan at all times

　　3. When the drill rod gets stuck, stop pushing immediately, release the operating handle of the switch, pull the drill rod back, and then continue operating

　　When the temperature of the electric drill casing rises to 55K, it should be stopped from use and cooled in time to avoid burning out the stator winding. After use, it should be properly placed and maintained.

　　Yucheng Wet Coal fired Drill ZMS12 provides you with high-quality products at a low price.
