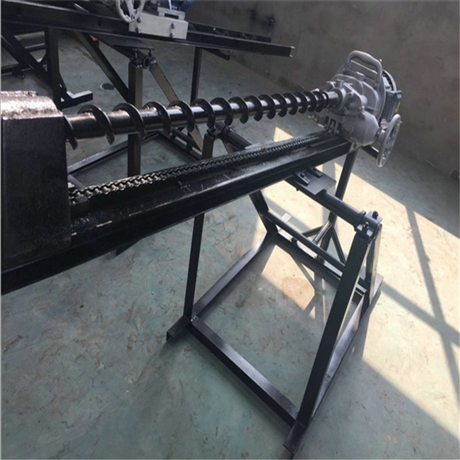

Yucheng Coal Mine uses rock electric drill KHYD-155 with drill bit and drill rod

Description :

　　Yucheng Coal Mine uses rock electric drillKHYD-155Equipped with drill bits and drill rods

　　KHYD-155Rock drills for coal mines, rock drills for coal mines, sales of rock drills, mining rock drills with drill bits and drill rods

　　 KHYD-155 coal mine rock electric drill, KHYD series drilling rig has strong overload capacity, which can reduce some stuck or penetrated drilling, and has a high rate of hole formation due to gangue inclusion. The KHYD series drilling rig requires a drilling frame to cooperate and can drill holes in any direction, such as horizontal forward or inclined upward. A manufacturer of mining rock drilling equipment, with a complete range of drilling rig models and specifications, and superior quality. KHYD rock drilling rig has strong overload capacity, which can reduce some stuck or penetrated drilling, and has a high rate of hole formation due to rock debris.

　　1、 Overview of KHYD-155 Rock Drilling Machine:

　　The KHYD-155 rock drilling rig has two drilling speeds and requires a drilling frame to cooperate. It can drill holes in any direction, including horizontal or inclined directions. In order to extend the service life of the drill bit and improve the working conditions of the operator, wet drilling with water powder discharge is adopted. During operation, the drilling rig can be pushed forward and quickly retracted by simply operating the handwheel.

　　2、 Technical parameters of KHYD-155 rock drill for coal mine:

　　Rated output power of motor: 3kw

　　Rated voltage of motor: 380v/660v

　　Rated frequency of motor: 50hz

　　Rated current of motor: 6.8, 3.9A

　　Motor speed: 1420r/min

　　Rated working mode: continuous

　　Drilling speed: 320 mm/min

　　3、 KHYD-155 coal mine rock electric drill is used for safety production:

　　1. Gas holes allow for the early release of coal seam gas, preventing coal and gas outbursts

　　2. Drill water holes and discharge holes, extract water sources in advance, and take measures to prevent water leakage accidents from occurring

　　3. Drilling water injection holes, injecting water for fire prevention in coal seams prone to spontaneous combustion, and injecting water into coal seams can significantly reduce the dust content in the air during coal mining

　　Used for excavation:

　　1. Drilling coal holes, used underground in coal seams with winding directions and thin coal seams, can reduce coal exploration costs and fully utilize coal resources

　　2. Drilling anchor holes, short distance rock tunnels, and long-distance coal tunnels through faults for rock excavation

　　If the rock drills produced by our company are damaged or cannot function properly due to poor manufacturing quality within 3 months from the date of shipment, they will be replaced or repaired. In addition to ensuring the supply of vulnerable parts, we also provide supporting drilling frames, brackets, quick gears, side water supply devices, drill bits, drill rods, and streets. The length of the runway can also be customized according to customer requirements. Welcome to your selection.
