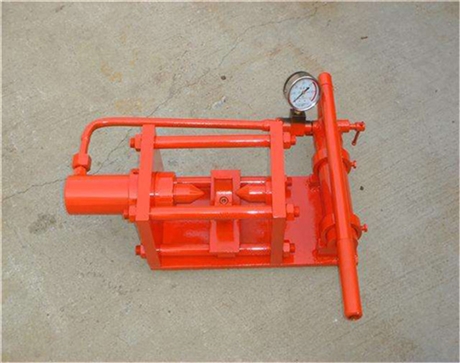

Tai'an Yucheng HQC40 Concrete Strength Tester Details

Description :

　　Tai'an YuchengHQC40Details of Concrete Strength Tester

　　HQC40Concrete strength tester, concrete strength tester, composition of concrete strength tester

　　The HQC40 concrete strength tester is mainly used to detect the strength of sprayed concrete in anchor spraying tunnels, and can also detect the strength grade of rocks. The rock core taken out by the concrete sampling machine is placed on the concrete strength tester to measure the hardness and determine the quality of the concrete. So HQC40 concrete strength tester is an ideal tool for testing concrete strength.

　　1、 Parameters of HQC40 Concrete Strength Tester:

　　Working load 30KN

　　Rated pressure: 15MPA

　　Coaxiality of two loaded cones<0.2mm

　　Test core sample with a diameter of 50MM

　　Journey: 60MM

　　Test accuracy: ± 2% -5%

　　Piston area: 19.63 C ㎡

　　Weight: 20KG

　　Dimensions 365 × 250 × 165 (MM)

　　2、 Usage of HQC40 Concrete Strength Tester:

　　1. Open the load valve of the hand pump counterclockwise to allow the hydraulic oil in the jack to return to the oil tank of the hand pump. Open the oil injection screw, add oil, and tighten any part of the joints to prevent oil leakage.

　　2. Place the collected core sample on the bracket, close the pressure relief valve of the hand pump, slowly shake the pressure rod to apply pressure until the core sample is damaged, record the pressure reading, release the pressure relief valve, press the pressure return switch, clean the damaged core sample, and complete one pressure measurement.

　　3、 Precautions for using HQC40 concrete strength tester:

　　1. This instrument uses a 2.5MPA needle pressure gauge as a specialized gauge for shotcrete strength. If the instrument is used for other rock tests, please replace it with a larger pressure gauge.

　　2. The working fluid should be 20 # mechanical oil or 20 # hydraulic oil. It is strictly prohibited to use alcohol, castor oil, brake oil, ordinary engine oil, etc. as working fluid.

　　The Tai'an Yucheng HQC40 concrete strength tester has high accuracy and its products are sold to many places across the country, and have been widely used.
