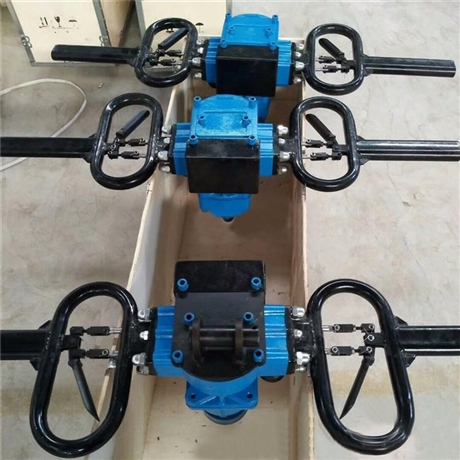

Yucheng column supported pneumatic drilling rig ZQSJ-100/2.5 pneumatic hand-held type
Category:
mechanical equipment/Fishery machinery and equipment/Mining drilling rig
Model:
ZQSJ-100/2.5
Brand:
Tai'an Yucheng
Retail Price
1,450.00USD
重量
kg
- Product Description
-
Description :
Yucheng column supported pneumatic drilling rigZQSJ-100/2.5Pneumatic hand-held type
ZQSJ-100/2.5Pillar supported pneumatic hand-held drilling rig,ZQSJ-100/2.5Pneumatic handheld drilling rig,ZQSJPillar supported pneumatic hand-held drilling rig
Tai'an Yucheng Mining Equipment Co., Ltd. offers a wide range of products with complete models and reasonable prices. We choose reliable companies to provide you with reliable products.
1、 The ZQSJ-100/2.5 column supported pneumatic handheld drilling rig is a portable drilling rig that has the characteristics of high torque, light weight, small size, reversible, simple structure, and easy maintenance. Compared with similar drilling rigs, this drilling rig is lighter in weight and has higher power. Therefore, it has high work efficiency, good support quality, low labor intensity for workers, and low footage cost. It is one of the essential equipment in the coal mining industry.
2、 Parameters of ZQSJ-100/2.5 column supported pneumatic handheld drilling rig:
Project ZQSJ-100/2.5
Working pressure Mpa 0.5
Rated torque (N.m) 100
Rated speed (N.m) 240
Output power kW 2.5
Starting torque (N.m) 160
Load torque (N.m) 155
Stall torque (N.m) 170
Load gas consumption m3/min 4
No load speed r/min 580
Noise pressure level dB (A) ＜ 100
Sound power level dB (A) ＜ 120
Drill tail size (mm) 32
Machine weight kg 25
3、 Advantages of ZQSJ-100/2.5 column supported pneumatic handheld drilling rig:
1. New layout mode, comfortable grip structure, easy to use.
2. Provide the current performance of handheld pneumatic devices, with a power output of 2.8kW and an efficiency improvement of 60% compared to existing models on the market.
3. Safe arm distance, easily overcoming the reverse torque when stuck in the drill, you can use it with confidence.
4. The brand new noise reduction structure allows you to work in a safe and suitable environment.
5. Special materials and manufacturing processes ensure an average trouble free working time of over 6 months.
6. The fully equipped drill rods are available for users to choose from, allowing the drilling rig to complete various drilling operations in coal seams, especially suitable for water and gas exploration holes, drainage holes, etc.
