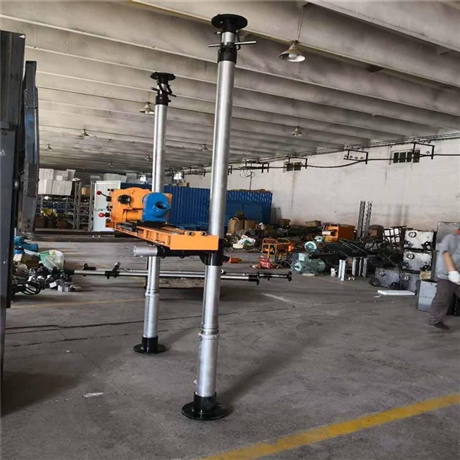

Coal mine pneumatic drilling rig ZQSJ-140/4.1S column supported Tai'an manufacturer
Category:
mechanical equipment/Fishery machinery and equipment/Mining drilling rig
Model:
ZQSJ-140/4.1S
Brand:
Tai'an Yucheng
Retail Price
1,600.00USD
重量
kg
- Product Description
-
Description :
Pneumatic drilling rig for coal minesZQSJ-140/4.1SPillar supported Tai'an manufacturer
ZQSJ-140/4.1SColumn supported pneumatic hand-held drilling rig, coal mine column supported pneumatic hand-held drilling rig, small pneumatic drilling rig
1、 Working principle of ZQSJ-140/4.1S column supported handheld pneumatic drilling rig:
The drilling rig can easily achieve forward and reverse rotation of the main motor by changing the position of the reversing handle, which can smoothly push out the drill bit and solve the problem of stuck drilling during drilling, avoiding the loss and waste of drilling tools. This drilling rig is widely used for pre drilling and measuring the water and gas conditions in front of the tunnel during excavation, and is very suitable for quickly completing the construction of anti outburst drilling holes such as gas and water exploration.
2、 Performance parameters of ZQSJ-140/4.1S column supported pneumatic handheld drilling rig:
serial number
Basic performance parameters
unit
ZQSJ-140/4.1S
one
Working pressure
Mpa
zero point four
zero point five
zero point six three
two
rated torque
N·m
eighty
ninety
one hundred
three
rated speed
r /min
two hundred and ten
two hundred and sixty
two hundred and fifty
four
*High output power
KW
one point seven
two point four
two point six
five
Rated gas consumption
m3/min
three
three point five
four point two
six
no-load speed
r /min
six hundred and thirty
six hundred and seventy
four hundred and eighty
seven
1/2 no-load speed
r /min
three hundred and fifteen
three hundred and thirty-five
three hundred and forty
eight
1/2 no-load speed torque
r /min
fifty-two
fifty-nine
seventy
nine
noise
sound power level
dB(A)
one hundred and twenty
ten
sound pressure level
one hundred and ten
eleven
machine weight
Kg
twenty-five
twelve
Drill tail connection size
mm
F13、F18、F24
thirteen
bit size
mm
Φ44、Φ76、Φ82
fourteen
Drill pipe specifications
mm
Φ42、Φ69、Φ76
3、 The composition of ZQSJ-140/4.1S column supported handheld pneumatic drilling rig:
The ZQSJ-140/4.1S column supported handheld pneumatic drilling rig is mainly composed of a handheld drilling rig and a column support. In narrow tunnel environments, the drilling rig can also be used separately as a handheld drilling rig, with light weight and easy operation.
The ZQSJ-140/4.1S column supported pneumatic hand-held drilling rig is one of our company's main products, which is used in major coal mines. Tai'an Yucheng Mining Equipment Co., Ltd. adheres to the business philosophy of excellent quality, complete products, diverse varieties, complete specifications, reasonable prices, and thoughtful service, and insists on providing products for our customers. We welcome new and old customers to come and consult us.
