Introduction to the parameters of Shandong Yucheng guide rail rock drill YGZ90
Category:
metallurgy/Mining construction equipment/Rock drilling machinery
Model:
YGZ9
Brand:
Tai'an Yucheng
Retail Price
3,500.00USD
重量
kg
- Product Description
-
Description :

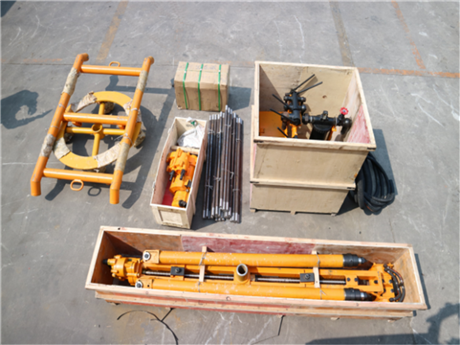

Introduction to the parameters of Shandong Yucheng guide rail rock drill YGZ90
YGZ90 guide rail rock drill, guide rail rock drill, YGZ90 guide rail rock drill parameter introduction, guide rail rotary rock drill
YGZ90 guide rail rock drill is a medium deep hole rock drilling tool powered by compressed air. It is mainly used for drilling upward boreholes in underground mining sites, and can also be used for drilling downward or horizontal boreholes such as anchor rods and slope protection in open-pit mining sites and square stone engineering, when matched with CTC14.2 single double machine mining drilling vehicles or FJY25 disc drilling frames. Drilling diameter? 50-? 80mm, effective drilling depth of 30m. use? The 65mm cross shaped alloy drill bit can achieve an average pure rock drilling speed of 680mm/min in F12-14 grade ore rock
2、 Structural characteristics of YGZ90 guide rail rock drill:
The machine adopts impact and rotating drills with independent structures. The impact energy and drill rod speed can be adjusted according to the ore and rock conditions. The impact part adopts a non compressed air distribution system, which can effectively utilize the expansion of compressed air for work. The rotating part of the drill rod is driven by gear reduction to rotate the drill rod. The gear type air motor is arranged on the upper part of the rock drill to shorten the total length of the rock drill. Therefore, it is more suitable for operating in narrow underground mining sites.
3、 Technical parameters of YGZ90 guide rail rock drill:
The YGZ90 guide rail rotary rock drill has a simple structure, centralized operation, easy disassembly and maintenance, and lightweight handling. The control panel and drilling rig can be separated. By connecting the rubber hose with its four working mechanisms, the operator can work remotely from the rock drill, creating a safe working environment and convenient operation, greatly improving work efficiency. The above is an introduction to this rock drill. If you need more detailed information, please contact our company. We look forward to hearing from you.
AfterSalesService :
Key words:- Guide rail rock drill
