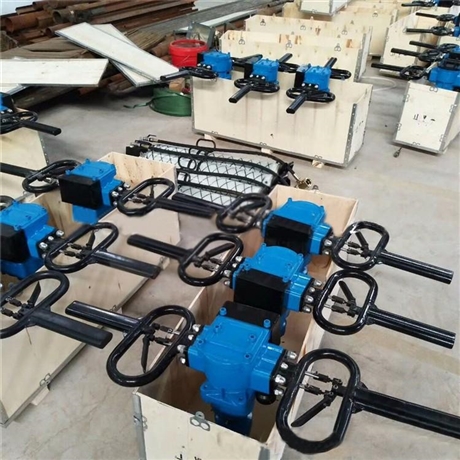

Leg supported pneumatic handheld drilling rig ZQST-65/2.5S is safe and reliable
Category:
mechanical equipment/Fishery machinery and equipment/Mining drilling rig
Model:
ZQST-65/2.5S
Brand:
Tai'an Yucheng
Retail Price
1,600.00USD
重量
kg
- Product Description
-
Description :
Leg supported pneumatic handheld drilling rigZQST-65/2.5Ssafe and reliable
ZQST-65/2.5SLeg supported pneumatic hand-held drilling rig, mining leg supported pneumatic hand-held drilling rig,ZQSTSeries column supported handheld drilling rig
The ZQST-65/2.5S leg supported pneumatic hand-held drilling rig is suitable for anchor rod support operations in coal and semi coal rock tunnels with rock hardness of f6. The drilling rig is portable and has the characteristics of safety and explosion prevention, high torque, high speed, good quality, small size, high efficiency, simple structure, and easy maintenance. It can effectively solve various operations such as gas release holes and water exploration holes, and is one of the essential equipment for production in the coal mining industry.
1、 Product features of ZQST-65/2.5S leg supported pneumatic handheld drilling rig:
Small size, light weight, easy operation, and convenient maintenance. When the motor starts, it can stabilize at the set point. Gear type pneumatic motor, stable operation, high reliability. The new fiberglass air leg design is safe, explosion-proof, and has a longer service life. This drilling rig has applied for a national patent.
2、 Technical parameters of ZQST-65/2.5S leg supported pneumatic handheld drilling rig:
unit
Working pressure MPa 0.50 0.63
Rated torque N/m 65
Rated speed r/min 380
Output power kw 2.5
Load torque N/m 90
Power starting torque N/m 95
Power stall torque N/m 100
Load gas consumption m3/min 4.3
No load speed r/min 1000
1/2 no-load speed r/min 500
Torque at 1/2 no-load speed N/m 45
Noise pressure level dB (A) 110
Upgrade power level dB (A) 120
Operating handle spacing m m 500
The ZQST-65/2.5S leg supported pneumatic handheld drilling rig has high work efficiency, good quality, low labor intensity for workers, and low footage cost. Therefore, it is one of the essential equipment in the coal mining industry. This series of drilling rigs can be used in conjunction with pneumatic anchor drilling rigs and pneumatic water pumps to achieve electricity free operations on the working face. Tai'an Yucheng is dedicated to serving you.
AfterSalesService :
Key words:- Leg supported pneumatic handheld drilling rig
