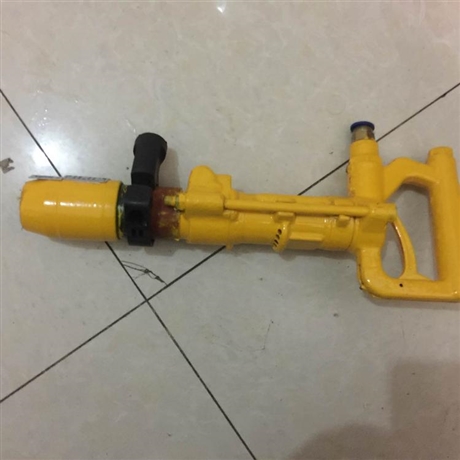

Ready stock supply of handheld rock drill Y5 model

Description :

　　Supply handheld rock drill Y5 model

　　Y5 handheld rock drill, handheld rock drill, Y5 handheld rock drill price, supply of handheld rock drill

　　Y5 handheld rock drill is a multifunctional pneumatic drilling machine, mainly used for drilling holes in rocks, brick walls, concrete and other components, installing pipelines, setting up power lines and installing anchor bolts. It can not only drill holes in rocks and concrete, but also drill walls. Pneumatic impact drills do not generate sparks during drilling, and have a very high safety factor. They can be used for both construction and mining purposes.

　　1、 Characteristics of Y5 Handheld Rock Drill

　　It has high power, no sparks, and can particularly demonstrate its safety in high gas mines. It is an essential tool for improving work efficiency and reducing labor intensity. Pneumatic impact drills have functions such as easy portability, anti-theft, waterproof, anti-static, etc. They are mobile and removable, flexible and convenient. The volume can be large or small, unrestricted, suitable for outdoor use, and implemented quickly.

　　2、 Technical parameters of Y5 handheld rock drill:

　　Machine weight: 5 kilograms

　　Cylinder diameter: 34 millimeters

　　Piston stroke: 32 millimeters

　　Cylinder inner diameter: 10mm

　　When the air pressure is 0.4Mpa, the impact energy is greater than or equal to 2.5 joules, the impact frequency is greater than or equal to 48 hertz, and the air consumption is less than or equal to 12 liters per second

　　Specification of impact drill bit: Diameter 8/12/14/16/18/20/24

　　*Large drilling depth: 240 millimeters

　　Dimensions of impact drill: length, width, and height (mm) 366 185 76

　　3、 Structure and working principle of Y5 handheld rock drill:

　　This impact drill consists of a handle body, pressure handle, cylinder, head, push rod, etc.

　　At the beginning of drilling with a pneumatic impact drill, it is advisable to drill slowly rather than quickly, as there is a process of compacting the rock layers around the blade foot of the casing, which requires repeated impact and compression, as this position is prone to perforation; Verticality correction should be carried out immediately after 2-3m. The pneumatic impact drill manufacturer only needs to backfill and redo the hole if the drilling depth is deep and the deviation is large (in fact, the specifications are all fake, but one important thing is that after excavating the soil around the pile head, it must appear in a horizontal and vertical line to the naked eye). The rock layer is generally inclined and perpendicular to the contact surface of the drilling rig. At this position, the gravel is backfilled and repeatedly drilled until the rock layer is flat. How to determine if there is a strong swing of the steel wire rope when it is flushed down, it is possible that this is the case, which can easily lead to drilling jamming, drill bit tilting, hole position tilting, etc.

　　The Y5 handheld rock drill is safe to use, has multiple functions, and has been widely used. Tai'an Yucheng supplies Y5 handheld rock drills, pre order as soon as possible.
