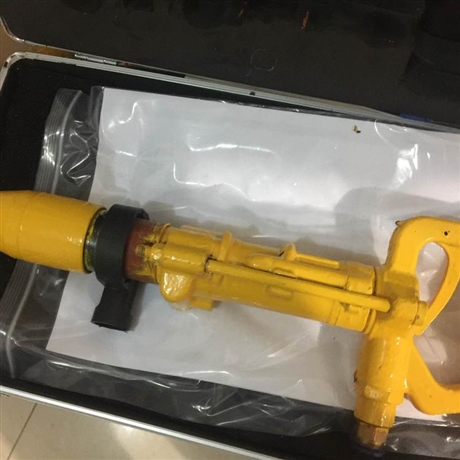

Handheld rock drill Y5 multifunctional handheld rock drill

Description :

　　Handheld rock drill Y5 multifunctional handheld rock drill

　　Y5 handheld rock drill, Y5 handheld rock drill price, Y5 handheld rock drill manufacturer, multifunctional handheld rock drill

　　The Y5 handheld rock drill has high power and no sparks. In high gas mines, it can particularly demonstrate its safety and is an essential tool for improving work efficiency and reducing labor intensity. Pneumatic impact drills have functions such as easy portability, anti-theft, waterproof, anti-static, etc. They are mobile and removable, flexible and convenient. The volume can be large or small, unrestricted, suitable for outdoor use, and implemented quickly.

　　1、 Structure and working principle of Y5 handheld rock drill:

　　This impact drill consists of a handle body, pressure handle, cylinder, head, push rod, etc.

　　At the beginning of drilling with a pneumatic impact drill, it is advisable to drill slowly rather than quickly, as there is a process of compacting the rock layers around the blade foot of the casing, which requires repeated impact and compression, as this position is prone to perforation; Verticality correction should be carried out immediately after 2-3m. The pneumatic impact drill manufacturer only needs to backfill and redo the hole if the drilling depth is deep and the deviation is large (in fact, the specifications are all fake, but one important thing is that after excavating the soil around the pile head, it must appear in a horizontal and vertical line to the naked eye). The rock layer is generally inclined and perpendicular to the contact surface of the drilling rig. At this position, the gravel is backfilled and repeatedly drilled until the rock layer is flat. How to determine if there is a strong swing of the steel wire rope when it is flushed down, it is possible that this is the case, which can easily lead to drilling jamming, drill bit tilting, hole position tilting, etc.

　　2、 Technical parameters of Y5 handheld rock drill:

　　Machine weight: 5 kilograms

　　Cylinder diameter: 34 millimeters

　　Piston stroke: 32 millimeters

　　Cylinder inner diameter: 10mm

　　When the air pressure is 0.4Mpa, the impact energy is greater than or equal to 2.5 joules, the impact frequency is greater than or equal to 48 hertz, and the air consumption is less than or equal to 12 liters per second

　　Specification of impact drill bit: Diameter 8/12/14/16/18/20/24

　　*Large drilling depth: 240 millimeters

　　Dimensions of impact drill: length, width, and height (mm) 366 185 76

　　Welcome to your selection.

　　The Y5 pneumatic impact drill is a type of impact drill with coal safety certification, which can impact and rotate. It has multiple functions and low air consumption. Whether it is a large fan or a small air compressor in the mine, it can be used together. The Y5 handheld rock drill is a lightweight and agile small pneumatic tool with the functions of impact rotation, simple impact, and clockwise rotation. It is also explosion-proof and spark free, and has good safety performance for pneumatic hammers. It is highly popular among construction workers in high gas mines.
