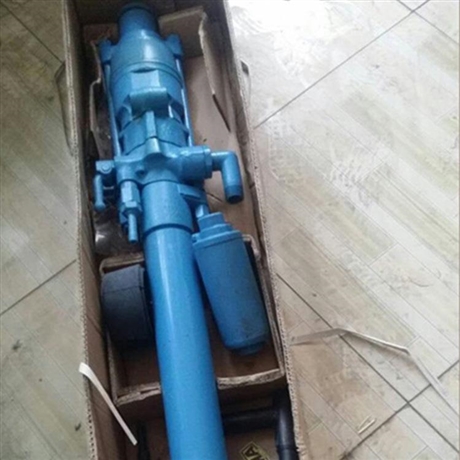

Spot supply of upward rock drill YSP45 handheld rock drill
Category:
metallurgy/Mining construction equipment/Rock drilling machinery
Model:
YSP45
Brand:
Tai'an Yucheng
Retail Price
2,200.00USD
重量
kg
- Product Description
-
Description :
Supply upward rock drill YSP45 handheld rock drill
YSP45 Upward Rock Drill, Introduction to YSP45 Upward Rock Drill, Handheld Rock Drill
Compared with other models of rock drills, the YSP45 upward rock drill is mainly used for mining, vertical shaft, excavation and other rock drilling operations. It can drill upward boreholes at an angle of 60 ° to 90 ° from the horizontal plane, and can also be used for installing wedge-shaped anchor rods or excavating shafts.
1、 Introduction to YSP45 Upward Rock Drill:
The rock hardness suitable for this machine is f=8-18, and the YSP45 upward high-frequency rock drill is a universal type. The body is made of high-strength lightweight alloy material, and the structural performance is no different from foreign products. The wedge block group can be interchanged. In addition, the same body can be equipped with two wedge groups of different lengths, suitable for more working conditions.
2、 Technical parameters of YSP45 upward rock drill:
Product model: YSP45
Z short length mm: 1420
Z large length mm: 2170
Pushing piston diameter mm: 74
Machine weight: 44kg
Dimensions of YSP45 upward rock drill (length; width; height): 1420 * 390 * 160mm
Cylinder diameter: 95mm
Pneumatic leg propulsion stroke: 750mm
Inner diameter of air leg cylinder: 74mm
Working pressure: 0.4MPa 0.5MPa 0.63MPa
Impact energy: 57J, 70J, 73.5J
Gas consumption 80L/s 83L/s 113.3L/s 83
Impulse frequency 42Hz 45Hz 46Hz 47
Torque 15N? M 18N? m 21N? m
Use water pressure of 0.3MPa
Tracheal meridian 25mm
YSP45 upward rock drill with a water pipe inner diameter of 13mm
Working temperature -3050
Drill tail specification B22& times; one hundred and eight
Suitable drilling diameter 3442mm
Suitable for Z large drilling depth of 6m
Rotation speed 350r/min
Weight 2.5kg
Oil capacity 0.52L
Tai'an Yucheng Mining Equipment Co., Ltd. produces and sells various rock drilling equipment, including mining gas hand-held drilling machines, mining pneumatic anchor drilling machines, explosion-proof hand-held coal-fired drills, mining rock drills, mining water and gas exploration rock electric drills, other drilling machine accessories, etc. The YSP45 upward rock drill is one of our best-selling products. The YSP45 upward rock drill has passed safety certification and is safe and reliable.
