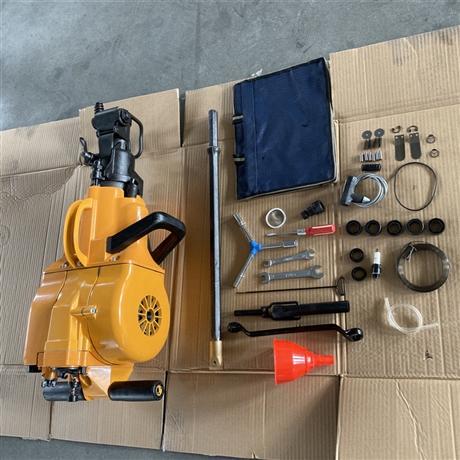

Yunnan Internal Combustion Rock Drill YN30A Details

Description :

　　Yunnan Internal Combustion Rock Drill YN30A Details

　　YN30A internal combustion rock drill, YN30A internal combustion rock drill manufacturer, handheld internal combustion rock drill

　　There are many models of Tai'an Yucheng internal combustion rock drills, and a detailed introduction will be given using YN30A as an example.

　　1、 The purpose of YN30A internal combustion rock drill:

　　1. The YN30A handheld internal combustion rock drill is suitable for rock drilling. If a few parts are replaced, it can be replaced with a crusher and compactor for various crushing, chiseling, excavation, splitting, compacting and other work.

　　2. YN30A handheld internal combustion rock drill is suitable for both high mountains and flat terrain; Work can be carried out in hot regions above 40 ° C or cold regions below 40 ° C.

　　2、 Technical parameters of YN30A internal combustion rock drill:

　　Host weight 28kg

　　Outline dimensions: length x width x height 760x335x235

　　Engine type: Single cylinder air-cooled two-stroke gasoline engine

　　Carburetor type without float

　　Ignition method platinum contact type

　　Engine displacement 185 cm3

　　Engine load speed (measured when drilling five holes) 2700-3000 r/min

　　Engine idle speed ≤ 2200 r/min

　　The idle speed of the drill rod is 180r/min

　　Drill shank size, drill rod tail hexagonal 22x108 mm

　　Impact energy ≥ 20J

　　Drilling speed (average of five holes) ≥ 200 mm/min

　　Large drilling angle of 45 °

　　Deep drilling depth ≥ 6 meters

　　Fuel tank capacity ≥ 1.65 L

　　3、 Characteristics of YN30A Internal Combustion Rock Drill:

　　1. YN30A handheld internal combustion rock drill is a handheld rock drilling tool composed of a small gasoline engine, compressor, and rock drill.

　　2. During the operation of YN30A handheld internal combustion rock drill, the compressed air generated by itself blows away the rock powder in the borehole.

　　3. The YN30A handheld internal combustion rock drill weighs only 30KG, making it easy to carry and suitable for areas with high mountains, no power supply, and no wind pressure equipment. It is particularly suitable for temporary projects with high mobility.

　　4. The YN30A handheld internal combustion rock drill can drill holes in rocks at angles of less than 45 degrees vertically, horizontally, and upward. Drill a deep hole vertically downwards to a depth of 6m.

　　YN30A internal combustion rock drill is widely used in mining, road construction, quarrying, national defense engineering, etc. YN30A internal combustion rock drill is one of our company's products. Tai'an Yucheng Mining Equipment Co., Ltd. adheres to the business philosophy of excellent quality, complete products, multiple varieties, complete specifications, reasonable prices, and thoughtful service, and insists on providing products for our customers. We welcome new and old customers to come and consult us.
