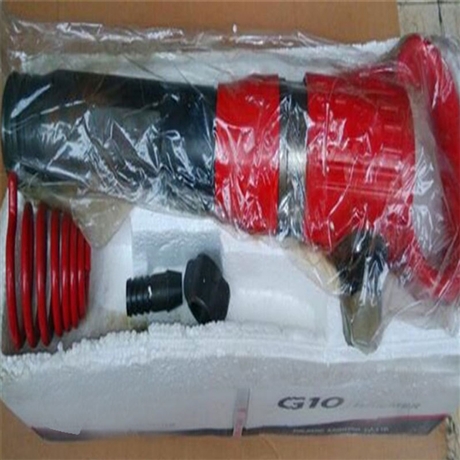

2020 G10 pneumatic pickaxe manufacturer in stock for sale

Description :

　　two thousand and twentyitemG10 pneumatic pickaxe manufacturer for sale

　　G10 pneumatic pick, technical specifications of G10 pneumatic pick, price of G10 pneumatic pick

　　The G10 wind pick is suitable for cutting layers, crushing soft ores, mining clay, destroying solid or frozen layers, breaking ice, and other purposes. Tai'an Yuchengsheng offers various models of wind picks, including B87C wind picks and air picks; G10 pneumatic pickaxe; B67C pneumatic pickaxe; B37 pneumatic pickaxe; B47 mining pneumatic pickaxes, as well as various pneumatic drilling machines, coal-fired drills, rock drills, rock drills, drill bits, drill rods, etc. There are many types and complete models available. If you need them, we have them. Please feel free to call us for consultation at any time.

　　1、 Brief description of the structure of G10 pneumatic pickaxe:

　　The G10 air hammer is a tool powered by compressed air. The compressed air is distributed alternately between the two ends of the cylinder body by a tubular distribution valve, causing the hammer body to undergo a reciprocating impact motion. The tail of the hammer rod is impacted, causing the hammer rod to be driven into the rock or ore layer until it splits into blocks.

　　2、 Main technical parameters of G10 pneumatic pick:

　　The total length of the body is 570 mm

　　Machine weight 10.6 Kg

　　Cylinder diameter 38 mm

　　Hammer stroke 155 mm

　　Hammer weight 0.9 Kg

　　Working pressure 0.63 Mpa

　　Impact energy ≥ 39.3 J

　　Impact frequency ≥ 18.4 Hz

　　Gas consumption ≤ 20 L/S

　　Inner diameter of trachea 16 mm

　　3、 Specification and requirements for G10 pneumatic pick and chisel:

　　The pickaxe drill is a tool that comes into direct contact with the workpiece. The material, size, and shape of the pickaxe drill have a significant impact on the productivity of the pneumatic pickaxe. The shape and length of the pickaxe drill depend on the hardness of the penetrated mineral layer. If the mineral layer is harder, the pickaxe drill is shorter, otherwise it is longer. Soft ore or ore layers with cracks are selected with a length of 300-400 millimeters, while hard and tough ore layers are selected with a length of 150-300 millimeters.

　　4、 Scope of use of G10 pickaxe:

　　1. Mining coal in coal mines, digging column foot pits, and opening water ditches;

　　2. Mining soft rocks;

　　3. Broken concrete, frozen soil, and ice breaking in construction and installation projects;

　　4. In the mechanical industry, there are occasions where impact motion is required, such as the loading and unloading of tractor and tank track pins.

　　Yucheng's 2020 new G10 wind pick is for sale, with a large quantity and competitive price. Please feel free to call and place an order at any time.
