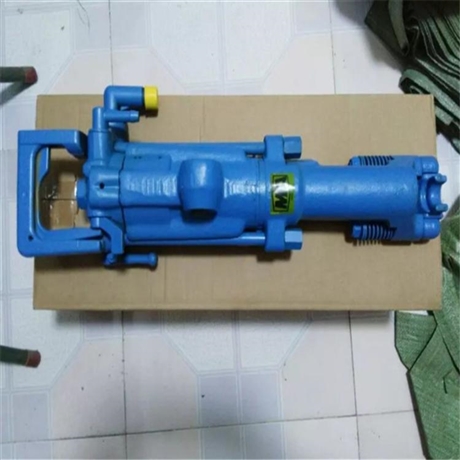

Introduction to Parameters of Inner Mongolia 7665 Air Leg Rock Drill
Category:
metallurgy/Mining construction equipment/Rock drilling machinery
Model:
seven thousand six hundred and sixty-five
Brand:
Tai'an Yucheng
Retail Price
680.00USD
重量
kg
- Product Description
-
Description :
Introduction to Parameters of Inner Mongolia 7665 Air Leg Rock Drill
7665 air leg rock drill, air leg rock drill, air leg 7665 series rock drill
Tai'an Yucheng Mining Equipment Co., Ltd. adheres to the business philosophy of excellent quality, complete products, multiple varieties, complete specifications, reasonable prices, and thoughtful service. We insist on providing products for our customers and welcome new and old customers to come and inquire.
1、 Classification and function of 7665 air leg rock drill:
The 7665 rock drill is divided into 7665 forward rotation rock drill and 7665 reverse rotation rock drill. The 7665MZ rock drill is suitable for different tunnel heights and can be used for drilling various types of soft and hard rocks with different hole sizes. Not only can anchor bolt holes be drilled, but also working face blast holes can be drilled, and resin anchor bolts can be mixed and initially installed. Suitable for both rock tunnels and mining preparation tunnels. Its multifunctional features are unmatched by similar rock drills both domestically and internationally, making it unique and distinctive.
2、 Technical parameters of 7665 air leg rock drill:
rock drill
model
rotate
direction
weight
kg
bore
mm
itinerary
mm
At 0.5MPa air pressure
Cylinder bore
mm
Inner diameter of water pipe
mm
Drill tail sleeve
mm
impact frequency
Hz
Impact energy
J
air consumption
L/S
7665M
reverse
twenty-five point five
seventy-six
seventy
≥34
≥62
≤56
twenty-five
thirteen
(B19×108)
B22×108
model
Total distance
mm
Unit * Large height mm
unit weight
Kg
Applicable tunnels
Height m
rock drill
Double stage air leg
contracted state
extended state
7665M
or
7665MZ
FT140Da
six hundred and forty-eight
one thousand and one hundred
one thousand seven hundred and forty-eight
thirty-eight point one
one point seven
FT140Db
eight hundred and forty-eight
one thousand and two hundred
two thousand and forty-eight
thirty-nine
two
FT140Dc
one thousand and forty-eight
one thousand and three hundred
two thousand three hundred and forty-eight
thirty-nine point nine
two point two
FT140Dd
one thousand two hundred and forty-eight
one thousand and four hundred
two thousand six hundred and forty-eight
forty point eight
2.4-2.6
FT140De
one thousand four hundred and forty-eight
one thousand and five hundred
two thousand nine hundred and forty-eight
forty-one point seven
2.6-3
FT140D1
one thousand six hundred and forty-eight
one thousand and six hundred
three thousand two hundred and forty-eight
forty-two point six
FT140D2
one thousand eight hundred and forty-eight
one thousand and seven hundred
three thousand five hundred and forty-eight
forty-three point five
3、 The characteristics of 7665 air leg rock drill:
1. The whole machine is short in height and has a large compression stroke. It is possible to drill anchor holes perpendicular to the roof surface, thus solving the long-standing problem of non perpendicular drilling of roadway anchor holes in mines and ensuring engineering quality.
2. We have innovatively developed a forward rotating rock drill. It can not only be used for drilling rock holes, but also for mixing and initial installation of resin anchor rods, achieving the simplification of equipment, management, saving construction costs, and improving efficiency.
3. B19 drill rod and ф 28 drill bit can be configured to meet the needs of promoting the "three small" new technology.
4. Good comprehensive rock drilling performance, not only suitable for f>; Drilling holes in medium hard rocks of size 8 is also suitable for drilling holes in rocks with f ≤ 6. It can be used for both rock tunnels and mining preparation tunnels.
5. The structure is simple and practical, easy to maintain, and the price is low, which is one sixth of the price of domestic soft rock anchor bolt machines.
Tai'an Yucheng Mining Equipment Co., Ltd. produces and sells mining air leg rock drills, including YT28 coal mine air leg rock drills; YT27 coal mine air leg rock drill; 7665 air leg rock drill, YT23 air leg rock drill; YT24 coal mine air leg rock drill; YT24A air leg rock drill; YT29A air leg rock drill and other models are complete and reasonably priced.
