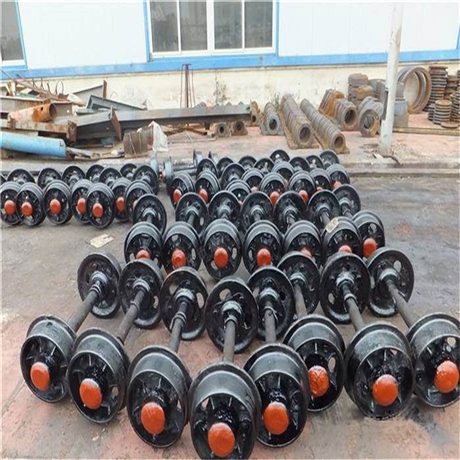

Forged 300 diameter mining car wheel manufacturer solid flatbed car wheel

Description :

　　Forging diameterthree hundredManufacturer of mining car wheelsets Solid flatbed truck wheels

　　Forging diameterthree hundredMine car wheelset, diameterthree hundredMining car wheels, forged mining car wheels, solid flatbed car wheels

　　Forged wheel sets with a diameter of 300 are one of the important components of mining cars, which are specialized vehicles for transporting minerals on mining tracks. In order to ensure the normal operation of the mining car on the track, it is necessary to ensure that the rules of the mining car wheel set are within the allowable range, and the tread profile size of the mining car wheel set is basically consistent.

　　1The structure of forging a 300 diameter mining car wheelset:

　　It is composed of wheels, shafts, bearings, sealing materials, and other components that make up the wheel set of a mining car

　　2、 The following types of failure may occur in forging the wheelset of a mining car with a diameter of 300, which can be prevented in advance:

　　1. Sealing failure. During the operation of a 1-ton mining wheel, if the operating environment contains coal slurry with acidic or alkaline components, the coal slurry will enter the bearing raceway through the gap of the sealing element, causing the coal slurry to block the steel ball and leading to jamming to a certain extent, further causing failure.

　　2. Bearing failure. When the bearing gets stuck, there is a certain degree of relative rotation between the inner and outer rings of the bearing and the axle or wheel hub, which further exacerbates the wear of the axle. When the inner circle of the wheel hub is severely worn, in this case, the gap between the wheel hub and the outer ring of the bearing will increase, leading to failure.

　　3. Abnormal wear occurred on the bearings of the forged 300 diameter mine car wheelset. For mining cars, ordinary tapered roller bearings are usually used for their bearings. The advantage of this type of bearing is its strong load-bearing capacity and high axial thrust resistance. Its shortcomings are mainly manifested in its weak anti jamming performance. This type of bearing, once immersed in coal slurry water during use, will block the bearing pipeline, thereby damaging the lubrication of the bearing to a certain extent.

　　3、 Characteristics of forging 300 diameter mine car wheelsets

　　The forged wheel with a diameter of 300 has a rim on the opposite side, leaving a certain gap between the rim and the steel rail. The tread surface of the wheel in contact with the rail is made into a cone shape to keep the wheelset aligned while running along the track, reducing mechanical wear and lowering running resistance. The cast steel mining car wheelset has a slightly greater bearing capacity and a longer service life.

　　Tai'an Yucheng Mining Equipment Co., Ltd. strives for survival through quality and development through reputation, and has won customer trust and market recognition with excellent product quality. Strive for social harmony and pursue the coordination and unity of benefits and environment.

AfterSalesService :

• Forged 300 diameter mine car wheelset
