Shandong Kuozhan Plastic Blind Ditch High Quality Supplier

Description :

　　Shandong Kuozhan Engineering Materials Co., Ltd. supplies PVC capillary waterproof drainage board | plastic blind ditch | drainage sheet | geotextile mat. Shandong Kuozhan Engineering Materials Co., Ltd. supplies permeable drainage plastic blind ditch pipe model RCP-30 | 20 | 10NG (A)

　　Shandong Kuozhan Engineering Materials Co., Ltd. produces permeable drainage sheets, plastic blind ditches, PVC capillary waterproof drainage boards, hard permeable pipes, reinforced microphone pads, environmentally friendly vegetation blankets, soft permeable pipes, and sand pit pads. We welcome new and old customers to visit and inspect our factory! Contact: Manager Xiao

　　Brand wide exhibition model plastic blind ditch

　　Material Other Applicable Scope Engineering Construction

　　Application: Infiltration and drainage. Dimensions: 50/60/80/100/150/200/250/300/400mm

　　Plastic blind ditch | Non woven flower tube | Circular plastic blind ditch | Square plastic blind ditch

　　Shandong Kuozhan Engineering Materials Co., Ltd. is an emerging environmental protection technology building materials enterprise mainly engaged in the production and sales of sand pit mats, green quilts, permeable drainage sheets, reinforced microphone mats, hollow plastic blind ditch pipes, hard permeable pipes, PVC capillary waterproof and drainage boards, soil and water protection blankets, anti-corrosion protective blankets, PFF integral composite filter layers, perforated corrugated pipes, flexible ecological slope protection gabion nets, grass planting grids, geomembranes, drainage boards, and geotextiles. Our company produces sand pit mats (specifically for golf course construction), green covers (specifically for golf course green lawns), vegetation blankets, ecological bags, microphone mats, flexible ecological slope protection gabion nets, grass grids, geomembranes, and drainage boards strictly in accordance with national standards, with advanced technology and reasonable prices.

　　We are engaged in various slope greening, landscaping, sponge city engineering, and comprehensive management of tailings ponds and landfills in highways, railways, mines, water conservancy, real estate, high and steep rock slopes, urban roads, and other areas. My construction team has experienced slope construction in Sichuan, Chongqing, Shandong, Hubei, Hunan, Shaanxi, Henan, Jiangsu, Jiangxi, Guangdong, Guangxi and other regions, as well as more than ten years of construction experience. We have absorbed advanced technologies from home and abroad and summarized a complete management system. The construction methods for slope greening include: high-order aggregate slope greening, vegetation concrete slope greening, thick substrate slope greening, three-dimensional mesh spraying slope greening, soil spraying slope greening, mixed spraying vegetation slope greening, vegetation bag slope greening, and other slope greening methods.

　　We have been diligently studying the production techniques of building materials such as sandpit mats and green covers for many years, and continuously innovating and forging ahead on this basis, making our company a large-scale manufacturer of environmentally friendly materials.

　　With the development of society and the improvement of people's living standards, their pursuit of high-quality life is becoming increasingly high, and a beautiful and fresh environment has become a real demand for people. In order to contribute to the improvement of the human environment, the company has increased its investment in technology and funds for new environmentally friendly materials, striving to produce more good products that meet the needs of people today.

　　We will establish good relationships, exchange and cooperate with all sectors of society with new concepts, sincere reputation, high-quality products, and excellent services, achieve mutual benefit, work hand in hand, and create beautiful achievements together! We strive to make our company's product technology more advanced and quality more guaranteed!

　　Product Introduction

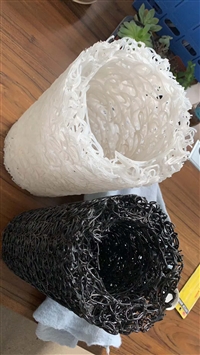

　　Plastic blind ditch is composed of a filter cloth wrapped around a plastic core. Plastic core is mainly made of thermoplastic synthetic resin, which is modified and extruded into thin plastic filaments through a nozzle in a hot melt state. The extruded plastic filaments are then fused together at the nodes through a molding device to form a three-dimensional mesh structure. There are various structural forms of plastic cores, such as rectangular, hollow matrix, circular, hollow circular, etc. This material overcomes the shortcomings of traditional blind ditches, with high surface porosity, good water collection, large porosity, good drainage, strong compression resistance, good pressure resistance, good flexibility, adaptability to soil deformation, good durability, light weight, convenient construction, greatly reduced labor intensity for workers, and high construction efficiency. Therefore, it has been widely welcomed by engineering bureaus and widely applied.

　　Scope of Application

　　1) Reinforcement and drainage of highway and railway subgrade shoulders;

　　2) Drainage of tunnels, underground subway passages, and underground freight yards;

　　3) Soil and water conservation in hillside land and slope development;

　　4) Vertical and horizontal drainage along various retaining walls;

　　5) Smooth and slippery drainage;

　　6) Drainage of ash piles in thermal power plants. Drainage of landfill engineering;

　　7) Drainage of recreational green spaces such as sports fields, golf courses, baseball fields, football fields, parks, etc;

　　8) Drainage of rooftop gardens and flower beds;

　　9) Construction drainage for building foundation engineering;

　　10) Underground irrigation and drainage systems for agriculture and horticulture;

　　11) The drainage system of low-lying wetlands. The drainage plastic blind ditch material for land preparation engineering is internationally known as composite geotextile drainage body 135=6288=5885, also known as three-dimensional drainage plate, and collection drainage culvert material for civil engineering. It is a three-dimensional porous material formed by heating and melting thermoplastic synthetic resin, extruding fiber filaments through a nozzle, stacking them together, and melting them together at the junctions.

　　Product performance

　　This product is made by high-pressure polyethylene extrusion processing, with different ribs and grooves on both sides to meet the needs of drainage, waterproofing, and fixation. Compared with other soft plastic sheets, it has a certain degree of rigidity, which is beneficial for maintaining drainage chambers. The material has a small specific gravity, relatively low cost, and has the characteristics of cold resistance, corrosion resistance, bacterial corrosion resistance, and not easy to age when buried in tunnel lining, with a long service life.

　　model

　　Circular specifications:

　　Model Item Circular

　　Dimensions ≥ 50 80 100 150 200

　　Hollow size ≥ 30 50 60 90 140

　　Weight g/m ≥ 320 750 1000 1500 2500

　　Void ratio% ≥ 75 80 80 80 80

　　Compression flattening rate 5% ≥ 85 75 65 50 45

　　Strength kpa Flatness rate 10% ≥ 0 70

　　Flatness rate 15% ≥ 210 0

　　Rectangular specifications:

　　Model project rectangle

　　External dimensions ≥ mm 70 * 35 120 * 35

　　Hollow size ≥ mm 70 * 10 40 * 10 * 2

　　Weight g/m ≥ 430 430

　　Void ratio% ≥ 82.82

　　Compression flattening rate 5% ≥ 70 60

　　Strength kpa Flatness rate 10% ≥ 100 90

　　Flatness rate 15% ≥ 160 130

　　Flatness rate 15% ≥ 220 180

　　Product Features

　　1. The composition fiber of plastic blind ditch is a wire strip of about 2mm, which is fused together to form a three-dimensional network. Its principle is the same as that of steel structure truss. The surface porosity is 95-97%, which is more than 5 times that of perforated pipes and 3-4 times that of resin mesh pipes. The surface water absorption rate is extremely high.

　　2. Due to its three-dimensional structure, the void ratio is 80-95%, making it lightweight and easy to manage. Its compressive performance is more than 10 times stronger than that of resin in pipe structures. Therefore, even if it is compressed due to overload, the residual void is still over 50% due to its three-dimensional structure, and there is no problem of water blockage, so there is no need to consider being crushed by soil pressure.

　　3. High compressive strength, with a compression rate of less than 10% under a pressure of 250kPa.

　　4. With anti-aging agent, it is durable, and can be stable even if it is placed under water or in the middle of soil for decades.

　　5. It is resistant to pressure and flexible, and can also be used for construction in curved positions such as bends. It is very lightweight, and if the backfill depth is about 10cm, a bulldozer can be used for backfilling.

　　6. Due to the above characteristics, various problems that have occurred in traditional blind ditches in the past, such as uneven settlement or partial blockage caused by overload, resulting in no gaps due to compression and functional interruption, can be solved by plastic blind ditch materials.

　　7. Due to the use of hot melting method instead of adhesive, it will not cause collapse due to adhesive aging and peeling.

　　There are various types of products with circular and rectangular cross-sections, and there are several product specifications. We can produce products with different characteristics such as high temperature resistance, flame retardancy, strong acid and alkali resistance, high elasticity, and high hardness according to customer orders using different formulas.

　　Our company's production of seepage and drainage blind ditches has high performance indicators, superior drainage performance, and convenient and safe construction.

　　Product Introduction

　　RCP seepage and drainage network pipe, also known as seepage sheet and geotextile mat, is made of polypropylene composite material, and added with various anti-aging, anti ultraviolet and other additives, so that it has high, low temperature, corrosion resistance, anti ultraviolet and other capabilities. It can be normally used at 40 ° C-80 ° C, and is resistant to strong acid and alkali. It has a long-term life in soil and water. The garbage leachate with extremely complex composition can also be collected and discharged at the bottom of the landfill site to maintain its performance for decades.

　　The RCP permeable drainage material produced by our company is a continuous long fiber porous new geosynthetic material made of hot-melt hydrocarbons. The main function is to collect and remove stagnant water from the soil. Reduce groundwater pressure. Widely used in underground drainage engineering for construction projects such as civil engineering, transportation, water conservancy, mining, municipal engineering, and environmental protection. In recent years, our company's products have been widely used in the seepage and drainage of high-speed railway retaining walls both domestically and internationally. The product is applied in many railway projects such as Changji High speed Railway, Jitu Yue High speed Railway, Mu Sui High speed Railway, Harbin Dalian High speed Railway, Guiyang Guangzhou High speed Railway, Beijing Shanghai High speed Railway, Shanghai Kunming High speed Railway, etc.

　　With the development of polymer materials, developed countries abroad have developed RCP permeable drainage materials in the 1970s to overcome the shortcomings of traditional plastic pipes that are prone to clogging during drilling. It has the advantages of high perforation rate, excellent compressive strength, large drainage capacity, good durability, and environmental protection, and has been widely welcomed in engineering since its appearance.

　　Shandong Kuozhan Engineering Materials Co., Ltd. welcomes new and old customers to visit, inspect and negotiate at the factory, to make progress together and promote the development of high-speed rail.

AfterSalesService :
