KVVP3 * 1.5 PVC insulated sheathed copper wire braided shielded control cable
Category:
Electrical Engineering/Wire and cable/Control cable
Model:
KVVP3*1.5
Brand:
Jinda
Product model:
KVVP 3*1.5
Conductor material:
oxygen-free copper
conductor cross-sectional area:
1.5mm²
core count:
3-core
insulating material:
Polyvinyl chloride (PVC)
sheath material:
Polyvinyl chloride (PVC)
Shielding method:
Copper wire braided shielding
rated voltage:
450/750V
Operating Temperature:
-15℃~70℃
Minimum bending radius:
≥ 6 times the outer diameter of the cable
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
Product model KVVP 3*1.5
Conductor material oxygen-free copper
conductor cross-sectional area 1.5mm²
core count 3-core
insulating material Polyvinyl chloride (PVC)
sheath material Polyvinyl chloride (PVC)
Shielding method Copper wire braided shielding
rated voltage 450/750V
Operating Temperature -15℃~70℃
Minimum bending radius ≥ 6 times the outer diameter of the cable
Description :

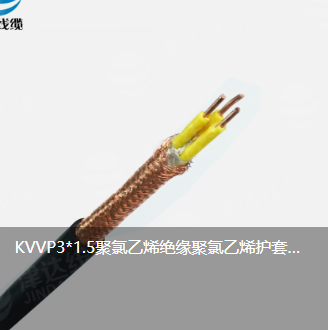

This product is a KVVP series copper core PVC insulated PVC sheathed copper wire braided shielded control cable, with a model specification of 3 * 1.5mm ². The cable conductor adopts multi strand fine twisted oxygen free copper wire, which has excellent conductivity and low resistivity, ensuring stable and efficient signal transmission. The insulation layer and outer sheath are both made of high-quality polyvinyl chloride (PVC) material, which has good electrical insulation performance, aging resistance, corrosion resistance, and certain flame retardant effect, and can adapt to long-term use in various complex environments.
Its core feature is that the wire core is wrapped with a high-density copper wire braided shielding layer on the outside. This shielding layer can effectively resist the interference of external electromagnetic fields (EMI) on internal signals, while also preventing the electromagnetic radiation generated by the cable itself from affecting external equipment. It is particularly suitable for situations that require high signal purity and anti-interference ability.
The cable structure is compact, with a uniform outer diameter and a small bending radius, making it easy to lay and install in narrow spaces or cable trays. The three main cores inside are distinguished by bright colors such as yellow for easy construction wiring and later maintenance identification. This product is widely used in industrial automation control systems, building intelligent security monitoring, instrument and meter connections, PLC control systems, and various electrical signal transmission lines that require shielding protection. It is an ideal choice to ensure stable operation of equipment and accurate data transmission.
