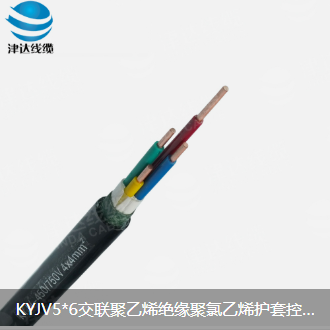

Jinda Cable KVV5 * 6 Cross linked Polyethylene Insulated Polyvinyl Chloride Sheathed Control Cable Flame retardant and Fire resistant Multi core Flexible Wire
Category:
Electrical Engineering/Wire and cable/Control cable
Model:
KVV 5*6
Brand:
Jinda Cable
rated voltage:
450/750V
Conductor material:
oxygen-free copper
insulating material:
Cross linked polyethylene (XLPE)
sheath material:
Polyvinyl chloride (PVC)
core count:
5-core
Cross-sectional area of single core:
6mm²
execution standard:
GB/T 9330, GB/T 12706
Operating Temperature:
-20℃ ~ +90℃
Flame retardant rating:
ZR-B level (optional)
bend radius:
≥ 15 times the outer diameter of the cable
Retail Price
10,000,000.00USD
重量
kg
- Product Description
-
rated voltage 450/750V
Conductor material oxygen-free copper
insulating material Cross linked polyethylene (XLPE)
sheath material Polyvinyl chloride (PVC)
core count 5-core
Cross-sectional area of single core 6mm²
execution standard GB/T 9330, GB/T 12706
Operating Temperature -20℃ ~ +90℃
Flame retardant rating ZR-B level (optional)
bend radius ≥ 15 times the outer diameter of the cable
Description :
This product is a KVV series control cable produced by Jinda Cable, with a specific specification of 5 cores and a conductor cross-sectional area of 6 square millimeters per core. The cable uses cross-linked polyethylene (XLPE) as the insulation layer material, which has excellent electrical performance, heat aging resistance, and environmental stress cracking resistance. The long-term working temperature can reach 90 ℃, far higher than ordinary PVC insulated cables. The sheath is made of polyvinyl chloride (PVC) material, which has good mechanical protection, oil resistance, acid and alkali corrosion resistance, and flame retardant properties, ensuring safe operation in complex industrial environments.
The cable structure is compact, with a moderate outer diameter, making it easy to install and construct in cable trays, pipelines, or directly buried installations. The internal 5 insulated wire cores are distinguished by different colors (such as red, blue, yellow, green, black, etc.) for easy wiring identification and maintenance, reducing construction error rates. The conductor is made of high-purity oxygen free copper wire twisted together, with high conductivity, low resistance, and stable signal transmission. It is suitable for control, monitoring circuits, and protection circuits with AC rated voltage of 450/750V and below.
Typical application scenarios include industrial automation control systems, PLC signal transmission, instrument and meter connections, building automation systems, secondary circuits of power substations, rail transit signal systems, etc. Especially suitable for occasions with high requirements for signal stability, fire resistance, and flame retardancy. The target users include electrical engineering companies, automation equipment manufacturers, construction general contractors, power system operation and maintenance teams, etc. The product complies with relevant national standards such as GB/T 9330 and GB/T 12706, with reliable quality and support for customized lengths to meet different project requirements.
