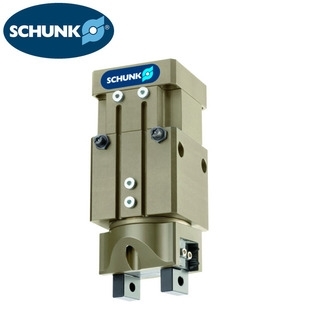

SCHUNK KGG 80-30 cylinder gripper from Germany is suitable for PCB handling and component assembly

Description :

  KGG 80-30 cylinder gripper is a high-performance pneumatic gripping component under the German SCHUNK brand, designed specifically for precision gripping tasks in automated production lines. This product mainly solves the problem of stable and fast clamping and releasing of small and medium-sized workpieces under high-speed operating conditions. It is typically used in the handling of printed circuit boards (PCBs), assembly of electronic components, and loading and unloading of light mechanical parts. As the core component of pneumatic actuators, the KGG 80-30 cylinder gripper, with its compact structural design and excellent repeatability positioning accuracy, can significantly improve the production efficiency and operational stability of automation units. It is an indispensable basic execution unit in modern intelligent manufacturing scenarios.

  The KGG 80-30 cylinder gripper is made of high-strength aluminum alloy main material, which has undergone hard anodizing treatment and has excellent wear resistance and corrosion resistance. The internal piston structure is precision machined and matched with low friction coefficient seals to ensure stable clamping force output during long-term high-frequency use. This model usually supports a standard industrial pressure range (such as 4-6 bar), and specific clamping force and stroke parameters need to refer to the official technical manual. The typical stroke is at the 30mm level, which can meet the gripping needs of most small and medium-sized workpieces. The product complies with German manufacturing standards and has common international safety compliance markings such as CE certification, ensuring safe operation in various industrial environments. Its modular design also facilitates integrated installation with other automation components such as quick change disks and rotating modules.

  In the selection application, KGG 80-30 cylinder gripper is particularly suitable for installation scenarios that are sensitive to weight, require quick response, and have limited space, such as 3C electronic manufacturing, semiconductor packaging testing, and other fields. For PCB boards with irregular shapes or fragile surfaces that need to be grasped, it is recommended to use customized flexible fingertips or vacuum suction cups to avoid damaging the workpiece. If the working conditions involve heavy-duty gripping or handling of large-sized sheets, larger specifications of cylinder grippers or heavy-duty mechanical grippers in the SCHUNK series should be considered. KGG 80-30 is not suitable for handling heavy-duty metal parts beyond its rated load capacity. When purchasing, it is necessary to clarify the type of air source interface and the installation location of sensors to ensure seamless integration with the existing PLC control system.

  When installing the KGG 80-30 cylinder gripper, it is necessary to ensure that the installation surface is flat and clean, and use the specified torque to tighten the bolts to prevent loosening caused by vibration from affecting the positioning accuracy. In daily maintenance, it is necessary to regularly check whether there is any air leakage in the air circuit connection, and add a small amount of atomized lubricating oil through the oil injection hole to maintain the lubrication status of internal moving parts and extend their service life. Common faults such as decreased clamping force or stuck movement are often caused by insufficient air source pressure, worn seals, or foreign objects entering the guide rail. It is necessary to promptly investigate the air source system and clean the guide rod. It is recommended to conduct a comprehensive inspection after a certain cycle of operation, recording the number of actions and status for predictive maintenance and ensuring the continuous and stable operation of the automated production line.
