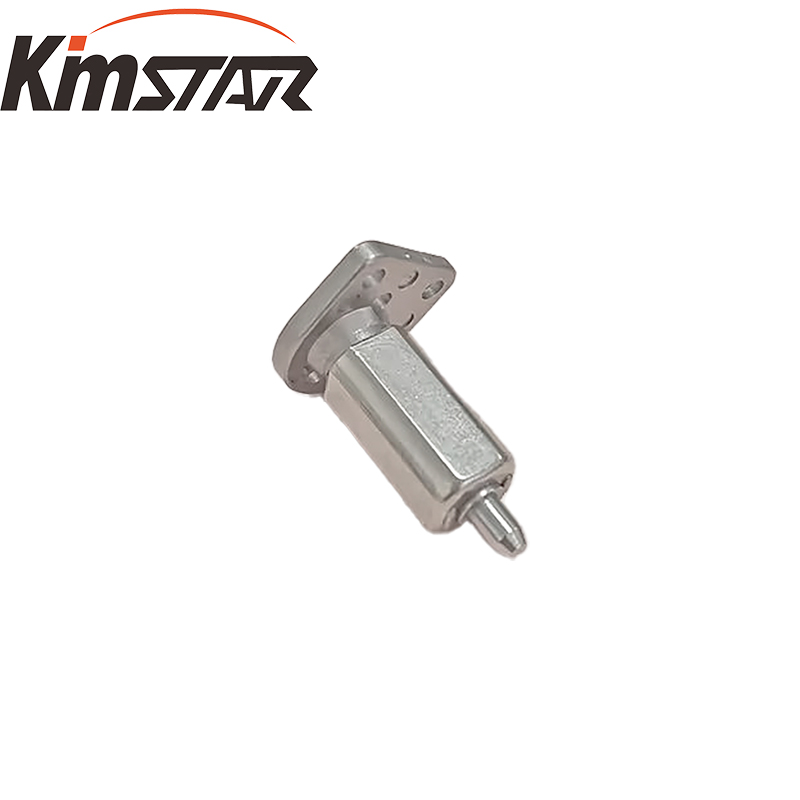

Drone shaft manufacturer supplies shock-absorbing hinge dampers

Description :

As the core transmission component of the gimbal, arm, and camera module, the accuracy, stability, and durability of the drone shaft directly determine flight safety, shooting quality, and overall lifespan. The current industry is generally facing five major pain points: loss of precision control, abnormal noise and jitter, insufficient lifespan, poor environmental adaptation, and difficulty in customization, which restrict product performance and reliability upgrades. Kingstone Technology has been deeply involved in the field of precision shafts for 20 years, providing one-stop comprehensive solutions for the pain points of drone shafts through technological innovation and full chain manufacturing capabilities.

1、 Core pain points in the drone pivot industry

Micro level precision loss of control, causing shaking and explosion of the machine

When the drone is running at high speed, if the coaxiality deviation of the shaft exceeds 0.02mm, high-frequency vibration will be generated, causing dragging of the gimbal image, motor whistling, and in severe cases, triggering flight control overload and causing the drone to explode. The traditional process accumulates large errors during multiple clamping, and the radial circular runout is difficult to control within 0.01mm, which cannot meet the high-precision requirements of industrial grade drones.

Unstable damping and frequent jamming noise

The torque error of the pan tilt axis exceeds ± 5%, which is prone to pitch lag and inaccurate angle positioning; Dynamic balance failure during high-speed rotation generates resonance noise, which affects the aerial photography experience and equipment concealment. The design of ordinary shaft damping structure is rough, with poor wear resistance and severe torque attenuation after long-term use.

Weak adaptability to extreme environments and sudden reduction in lifespan

Drones often operate in environments with temperature differences ranging from -40 ° C to 85 ° C, humidity, and salt spray. Ordinary shafts are prone to rusting, lubrication failure, and material deformation, resulting in rotation jamming and fracture; The industry generally has a lifespan of less than 10000 folds/rotations of the shaft, far below the designed lifespan of the entire machine.

Insufficient customization capability and high adaptation cost

Different models (consumer grade, industrial grade, plant protection grade) have significant differences in requirements for shaft size, torque, limit angle, and wire structure. Most manufacturers have weak research and development capabilities, long customization cycles (over 30 days), and high sampling costs, making it difficult to quickly match the iterative needs of the entire machine.

The contradiction between lightweight and strength limits the battery life

The pursuit of long endurance for unmanned aerial vehicles requires overall lightweighting. Traditional shafts are made of ordinary steel, which is heavy and lacks strength; Lightweight materials also face problems of poor load-bearing capacity and easy deformation, making it difficult to balance weight, strength, and transmission stability.

2、 Ginst Technology: Comprehensive Solution, Directly Targeting Industry Pain Points

As a benchmark enterprise in the research and development of precision shafts, Kingstone Technology has a headquarters in Shenzhen, an intelligent factory in Dongguan, and an international operation network. It has the ability to conduct research and development, simulation, manufacturing, quality control, and customization in a closed-loop manner, with 58 core patents and ISO9001 and IATF16949 certifications. Its products comply with RoHS environmental standards. We provide the following comprehensive solutions for the pain points of drone pivot:

（1） Micro scale precision manufacturing eliminates the risk of vibration

Process upgrade: Adopting German DMG five axis machining center, one-time clamping molding, eliminating accumulated errors from multiple clamping; The Japanese Sanfeng imaging measuring instrument is fully inspected, with a tolerance controlled within * * ± 0.005mm * *, and the coaxiality and radial circular runout are far superior to industry standards.

Material selection: High strength alloy steel, 65Mn spring steel, and aviation grade aluminum alloy are used, balancing lightweight and high rigidity. The tensile strength is increased by 30% and the weight is reduced by 15%.

Dynamic balance calibration: Each shaft undergoes strict dynamic balance testing before leaving the factory, with no eccentric vibration during high-speed rotation, completely solving the problems of pan tilt shaking and motor abnormal noise.

（2） Accurate damping control for smooth and quiet operation

Patent damping structure: self-developed precision spring and damping plate combination, torque control accuracy of * * ± 3% * *, far exceeding the industry standard of ± 5%, achieving customized torque in a wide range of 0.1N · m-50N · m.

Silent buffer design: using wear-resistant alloy and self-lubricating coating, there is no abnormal noise or jamming after 30000 rotations; Supports 360 degree infinite rotation, 45 degree/90 degree limit positioning, and adapts to the multi angle adjustment needs of the gimbal.

Torque stabilization technology: special heat treatment and surface strengthening process, long-term use torque attenuation is less than 10%, solving the problems of traditional shaft damping failure and angle drift.

（3） Extreme environment adaptation, ultra long lifespan guarantee

Wide temperature tolerance design: Stable performance in extreme environments ranging from -40 ℃ to 85 ℃, with no cold brittleness or hot deformation of materials, and no solidification or loss of lubricating grease.

Anti corrosion and wear-resistant treatment: salt spray test for 500 hours without corrosion, suitable for humid and corrosive environments such as coastal areas and plant protection; The wear-resistant lifespan reaches 20000 folds/rotations, which is twice the industry average.

Sealed protective structure: IP67 waterproof and dustproof design, preventing rainwater and dust from entering the inside of the shaft, avoiding jamming and malfunction.

（4） Quick customization service, efficient adaptation of models

Full process customization capability: A professional R&D team of 20 people independently completes structural design, material selection, simulation analysis, and supports direct import of 3D drawings into production.

Rapid response mechanism: 72 hours for rapid prototyping, shortening the mold development cycle to 15 days, 50% faster than the industry average, and adapting to the rapid iteration needs of drones.

Multi scenario adaptation solution: covering wing retraction and extension pivot, gimbal damping pivot, camera rotation pivot, folding arm pivot, etc., supporting customization of special functions such as hollow wire passing, angle limit, and high torque bearing.

（5） Lightweight and high-strength integration, helping with long battery life

Lightweight structural design: adopting hollow shaft and thin-walled structure design, significantly reducing weight while ensuring strength, helping unmanned aerial vehicles reduce energy consumption and improve endurance.

Application of high-strength materials: aviation grade aluminum alloy with surface hardening treatment, balancing lightweight and high load-bearing capacity, capable of withstanding impact loads during high-speed maneuvering of drones, and not easily deformed or broken.

3、 Kinster Technology: The Trusted Choice for Drone Spindles

Kingstech Technology takes technology as its core, quality as its foundation, and customization as its advantage. It has been deeply involved in the field of drone shafts for many years, serving numerous leading drone brands and accumulating rich practical experience. From consumer grade aerial drones to industrial grade inspection and plant protection drones, high-precision, high stability, long-life, and easily adaptable pivot solutions can be provided to help upgrade the overall performance of drones, eliminate flight hazards, and enhance user experience.

Choosing Kingstone Technology means choosing a precise, stable, and reliable drone pivot solution that ensures every flight is safe and smooth, and every shot is clear and stable.
