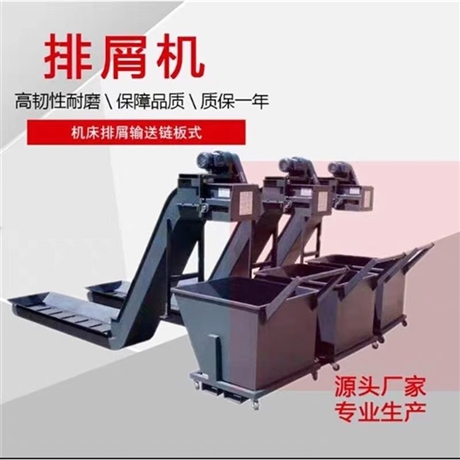

Chain plate chip conveyor Scraper chip conveyor Magnetic chip conveyor Spiral chip conveyor

Description :

The chip conveyor is mainly used in metal cutting scenarios such as CNC machine tools, machining centers, modular machine tools, and automated production lines. It can quickly, continuously, and automatically collect and transport iron chips, copper chips, aluminum chips, grinding chips, and chip fluid, achieve the separation and recovery of chips and cutting fluid, maintain machine tool cleanliness, extend tool life, and improve workshop automation and environmental protection level.

main types

1. Chain plate type chip conveyor

Strong load-bearing capacity, suitable for conveying block, roll, and long iron chips, with the strongest universality, suitable for various heavy-duty cutting machine tools.

2. Scraper chip conveyor

Compact structure, smooth operation, suitable for powder, granular, and short chips, commonly used in grinding machines and gear processing equipment.

3. Spiral chip conveyor

Small in size and flexible in layout, suitable for chip removal in narrow spaces, often used for chip removal and conveying at the bottom of single machine tools.

4. Magnetic chip conveyor

Utilizing magnetic adsorption to transport ferromagnetic debris, suitable for precision grinding machines and small piece processing equipment, with clean and residue free chip removal.

5. Composite/centralized chip removal system

Multi machine joint conveying can be matched with filtering, pressing, and chip collection vehicles to achieve centralized chip removal in the workshop.

Product Features

-Automatic continuous chip removal: No need for manual cleaning, reducing downtime and improving processing efficiency

-Stable and reliable transportation: smooth operation, low noise, low failure rate, and can work continuously for 24 hours

-Durable and sturdy structure: Made of wear-resistant steel plates and high-strength chains, it is impact resistant, corrosion-resistant, and has a long service life

-Chip fluid recovery: can achieve separation of chips and coolant, saving cutting fluid usage costs

-Flexible installation: can be installed horizontally, tilted, and at multiple angles, adapting to different machine tool structures

-Environmentally friendly and tidy: reduce workshop dust and oil pollution, improve production environment, and facilitate 5S management

Scope of Application

Widely used in various mechanical processing fields such as CNC lathes, machining centers, drilling and milling composite machine tools, grinders, gear processing equipment, automotive parts production lines, mold processing, engineering machinery processing, etc.

Fully automatic chip conveyor, specialized in conveying various metal chips, automatic chip removal, efficient and stable, durable.

Multiple styles of chain plates/scrapers/spirals/magnets are available, suitable for various CNC machine tools, and can be matched with centralized chip removal systems to make the workshop cleaner and production more efficient.
