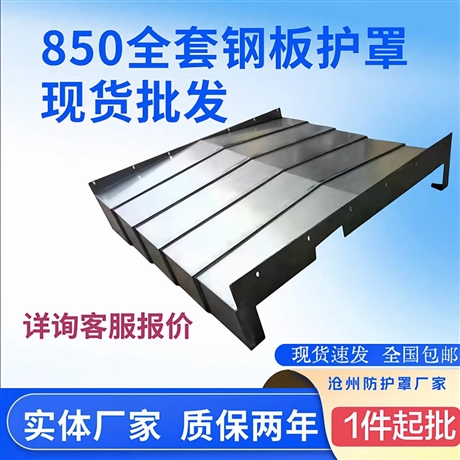

Steel plate protective cover, machine tool protective plate, stainless steel telescopic protective cover, machining center guide rail protective cover

Description :

Steel plate protective cover (steel telescopic guide rail protective cover) is a commonly used rigid protective device in the machine tool industry:

1、 Infrastructure and Materials

1. Material: The main body is formed by cold pressing of 2-3mm cold-rolled steel plate/stainless steel plate; The surface can be painted, galvanized, or sprayed with plastic for rust prevention; Equipped with scraping strips, sealing strips, stainless steel cover plates to prevent high temperature burning, and scratch rails.

2. Structure: Multiple parallel linkage telescopic units with sliders/rollers/hinges; Stretching compression ratio is usually 3:1~5:1; Can be installed horizontally, vertically, and diagonally in multiple directions; The high-speed model has a linkage mechanism on the bottom, with a maximum speed of 120m/min and can withstand 2G acceleration.

3. Types: U-shaped, square, ridge type, inclined type; Customizable size, stroke, and sealing grade.

2、 Core functions and advantages

1. Strong protection: isolate iron filings, dust, coolant, and oil stains, avoid rail wear and corrosion, protect machining accuracy, and prevent accidental tool impact.

2. Stable operation: parallel and synchronized design, no snake movement, low noise, and smooth high-speed operation; Durable and resistant to trampling, resistant to hard object impact without deformation.

3. Modularization: fast installation and disassembly, convenient maintenance, and adaptability to various machine tools; Long service life and low overall cost.

3、 Applicable scenarios

Widely used in CNC machine tools, machining centers, gantry milling, grinding machines, lathes, etc; Especially suitable for industrial environments with heavy cutting, high-speed cutting, high coolant content, and large dust.

4、 Key points for selection and customization

Determine the material, structure, and sealing scheme based on the guide rail travel, speed, installation space, protection level, degree of environmental corrosion, and whether high temperature protection is required; It is recommended to have a professional manufacturer conduct on-site surveying and customization.
