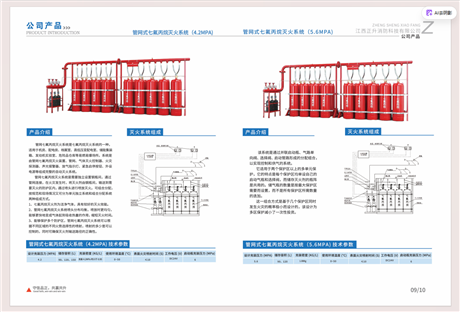

Pipeline network heptafluoropropane gas fire extinguishing, IG541 high-pressure carbon dioxide IG100

Description :

1、 Product Overview

Combination distribution network heptafluoropropane isLarge scale coal chemical industry, preferred fire extinguishing system for central control of the entire plant (GB16670 national standard)Gas cylinders are centrally placed in dedicated gas cylinder rooms and laid through high-pressure seamless steel pipes to nozzles in various protective areas, relying on pipeline networks to transport chemicals for complete flooding and fire extinguishing;A set of steel cylinders can take turns protecting multiple independent roomsIt is a standard configuration for large-scale project DCS central control, air distribution room, and complete instrument cluster, perfectly matching the DC24V control of Dingxin fire linkage host.

The fire extinguishing agent heptafluoropropane has clean insulation, no corrosion, fast fire extinguishing speed, protects precision instruments and high-voltage electrical equipment, and is suitable for high standards of coal chemical explosion prevention and safety supervision acceptance.

2、 System composition

Gas storage cylinder group+container valve+selector valve+driving gas cylinder+high-pressure pipe network+nozzle+signal feedback device+pressure relief port+DC24V electromagnetic starting component, the whole set is controlled by the fire alarm system linkage.

Three types of activation:Automatic control, remote electronic control manual, on-site mechanical emergency manual between gas cylindersThe fire alarm will be delayed for 30 seconds before evacuation, and the spraying signal will be transmitted back to the Dingxin fire control host.

3、 Core features (key points in connection with General Manager Song)

1. Multi zone shared gas cylinders save equipment investment
   A set of gas cylinder room air sources can be switched through selection valves to protect several or even more protective rooms. The comprehensive cost of large-scale coal chemical connected central control and multiple instrument rooms is better than that of multiple cabinet types.
2. Large protective capacity
   A single system can cover several thousand cubic meters of protective volume, and a large area of the entire factory cabinet building can only be allocated using a combination of pipeline networks, which cannot be met by cabinet machines and suspensions.
3. Centralized management, convenient maintenance
   Steel cylinders are stored centrally in the cylinder room, and maintenance, weighing, and chemical filling operations are carried out in a centralized manner, without the need to dismantle each room. Coal chemical operation and maintenance are most favored.
4. Strong linkage adaptability
   Standard DC24V driver, complete set of smoke temperature sensing, emergency start stop, and air release indicator lights that can be paired with Dingxin alarm system.

4、 Applicable scenarios (precision coal chemical industry)

1. Coal chemical plant joint central control DCS building, connected rack room cluster;
2. Main control room of air separation unit, large transformer and distribution building, multiple complete analysis cabins;
3. Coal to olefin/coal to ethylene glycol main plant instrument room, large UPS distribution room.

5、 Short differentiation of three products (talk to talk)

• suspendedSmall space, lifting, no pipelines, single unit protects a small room separately;
• cabinet-typeSmall and medium-sized rooms, floor standing cabinets, single cabinet independent protection area;
• Pipeline network combination allocationLarge area multi room cluster, centralized gas cylinder room, main solution for large-scale coal chemical industry.

6、 WeChat Simplified Short Sentences (Direct to Mr. Song)

The pipeline network is combined to distribute heptafluoropropane centralized gas cylinders for storage, pipeline transportation of chemicals, and a set of gas sources that can be partitioned to protect multiple central control instrument rooms. It is a standard configuration for large-scale coal chemical connected cabinet rooms, and the electronic control is perfectly compatible with the Dingxin alarm system, suitable for supporting your company's large-scale chemical projects.
