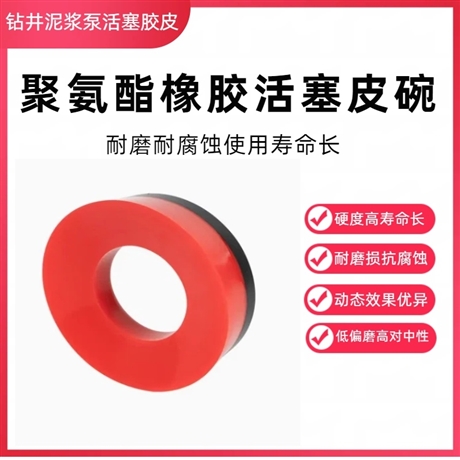

Wear resistant and corrosion-resistant polyurethane mud pump piston, oilfield drilling sealing accessories, high-pressure special mud pump, skin bowl drilling integrated composite polyurethane piston

Description :

•   The piston of the mud pump is the core vulnerable part of the hydraulic end of the reciprocating pump. Its main function is to perform reciprocating motion inside the cylinder liner, forming alternating changes between the high-pressure chamber and the low-pressure chamber, thereby sucking in and discharging drilling mud. This component directly withstands high pressure, high-frequency impact, and abrasive media containing solid particles, and its performance directly affects the volumetric efficiency and operational stability of the mud pump. This product is made of high-performance polyurethane material and is designed to solve the problems of poor wear resistance and short service life of traditional rubber pistons. It is suitable for harsh working conditions such as oil drilling, shale gas extraction, and non excavation engineering, ensuring stable sealing effect in high-pressure environments.
•   The piston of the mud pump is made of imported or domestically produced high-quality polyurethane elastomer, which is molded through high-temperature vulcanization process and has extremely high mechanical strength and tear resistance. The hardness of the material is usually controlled between Shore A 90-95 degrees, ensuring sufficient rigidity to resist deformation while retaining necessary elasticity to achieve good sealing. The product complies with API 7K or relevant petroleum industry standards, with high surface finish and strict control of dimensional tolerances in the micrometer range to ensure a reasonable fit clearance with the cylinder liner. Polyurethane material naturally possesses excellent oil resistance, hydrolysis resistance, and corrosion resistance, and can maintain stable physical properties for a long time in drilling fluids containing oil, water, and weak acid alkaline substances, without easily swelling or aging degradation
•   When selecting, it is necessary to match the specific model of the mud pump (such as F series, 3NB series, etc.) and the diameter of the cylinder liner. The piston structure dimensions of different brands and models may vary and cannot be used interchangeably. Compared to nitrile rubber pistons, polyurethane mud pump pistons have 3-5 times higher wear resistance, making them particularly suitable for high pump pressure, high impact, and high sand content geological operations; However, in extreme low-temperature environments or working conditions containing strong oxidizing media, material adaptability needs to be evaluated. If the working conditions are mainly water or low wear media, lower cost rubber products can be considered; For high load scenarios such as deep well drilling, this wear-resistant and corrosion-resistant polyurethane material is an ideal choice to extend the pump inspection cycle and reduce overall usage costs.
•     Before installing the piston of the mud pump, it is necessary to clean the inner wall of the cylinder liner and the piston rod, and check for scratches or burrs to avoid damaging the sealing surface. Special tools or lubricating grease should be used during installation to avoid forcefully knocking and causing polyurethane edge breakage. In daily maintenance, the wear of the piston should be checked regularly. Once the outer diameter decreases beyond the allowable tolerance or there are cuts or peeling, it should be replaced immediately in groups. It is strictly prohibited to mix old and new to prevent eccentric wear and damage to the cylinder liner. Common faults include seal failure leading to backflow, piston delamination, etc., which are often caused by improper installation or blockage of the cooling and flushing system. Maintaining good flushing water pressure and quality is a key measure to extend its service life.
