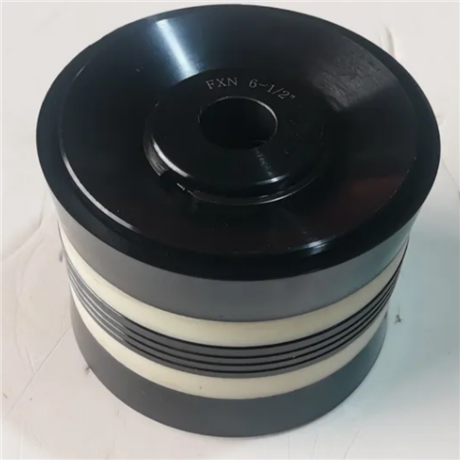

F-series mud pump polyurethane piston assembly metal bracket anti stripping drilling special

Description :

  The F-series mud pump polyurethane piston assembly is a key vulnerable component designed specifically for oil drilling mud pumps, mainly to solve the problems of short service life and rapid sealing failure of traditional rubber pistons under high pressure and high wear conditions. This assembly uses high-performance polyurethane material as the sealing body, combined with high-strength metal skeleton support, suitable for the hydraulic end components of F series and various models of reciprocating mud pumps. Its core function is to maintain good sealing between the cylinder liner and piston during the reciprocating motion of the mud pump, ensuring stable mud delivery pressure, reducing leakage, and ensuring continuous and efficient drilling operations. It is the core component for maintaining the volumetric efficiency of the mud pump.

The specification design of the piston assembly of the mud pump strictly follows the general standards for oil drilling and production equipment accessories, and the main structure is composed of high-quality polyurethane elastomer and precision machined metal brackets. Polyurethane materials have extremely high wear resistance and tear strength, with hardness typically controlled between 90-95 degrees Shore A to balance sealing and flexibility. The metal bracket has undergone anti-corrosion treatment, with a high surface finish to ensure a tight bond with polyurethane. The key process lies in the vulcanization bonding technology between metal brackets and polyurethane. Through special interface treatment agents and high-temperature and high-pressure vulcanization processes, the industry pain point of easy delamination between metal and rubber materials is completely solved, ensuring a firm connection under long-term alternating loads without loosening or delamination.

When selecting the piston assembly of a mud pump, it is important to confirm the specific model and cylinder liner size of the mud pump. The piston diameter and installation structure corresponding to different sub models of the F series may vary, and must be consistent with the original accessories or pump body nameplate parameters. This product is particularly suitable for harsh drilling environments with high sand content and large pressure fluctuations. Compared to ordinary rubber pistons, its wear resistance life can be increased by 2-3 times. If the working condition is extremely low temperature or highly corrosive chemical mud, it is recommended to consult the material compatibility first. For non F-series old pump models, it is necessary to measure the piston outer diameter, height, and center hole diameter to ensure geometric size matching and avoid early wear or seal failure due to improper installation clearance.

Before installing the piston assembly of the mud pump, carefully check whether the inner wall of the cylinder liner is smooth and free of scratches, and apply an appropriate amount of lubricating grease to reduce the initial friction resistance. Special tools should be used to press in during installation, and it is strictly prohibited to directly strike the polyurethane surface to avoid local deformation or damage. In daily maintenance, the discharge pressure and flow rate of the mud pump should be regularly monitored. If there is a significant decrease in pressure or an increase in leakage, the wear of the piston should be checked in a timely manner. Common faults include polyurethane lip flanging or excessive wear, which should be replaced immediately to avoid direct contact between the metal bracket and the cylinder liner, causing more serious equipment damage. When shutting down for maintenance, it is recommended to clean the piston rod and surrounding sediment to extend the service life of the entire set of components.
