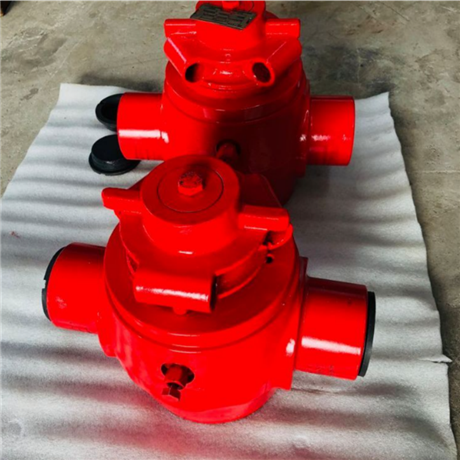

3-inch stainless steel plug valve for oil drilling with high pressure and anti-corrosion casting body

Description :

  The specialized plug valve for petroleum drilling is a key control component in oilfield drilling operations, mainly used to cut off or connect drilling fluid channels, and solve fluid control problems in high-pressure environments. The typical operating conditions of this valve include high-pressure and highly corrosive scenarios such as drilling platforms, cementing operations, and fracturing construction. As a high-pressure and corrosion-resistant plug valve used in oil fields, its core function is to quickly open and close and reliably seal, ensuring the safety and efficiency of the drilling process. 3-inch stainless steel plug valves are widely used in various drilling rig mud pipeline systems due to their moderate diameter size. They can effectively cope with complex and changing underground environments and are indispensable basic components in petroleum equipment accessories.

This plug valve is made of high-quality stainless steel material, with a cast body structure and excellent mechanical strength and corrosion resistance. In terms of specifications, the nominal diameter is 3 inches (DN80), which complies with petroleum industry standards such as API Spec 6A or GB/T 22513. The casting process ensures the smoothness of the internal flow channel of the valve body, reducing fluid resistance and erosion wear. The pressure resistance level usually covers the conventional drilling pressure requirements, and the specific pressure value needs to be determined according to the actual order technical agreement, but it generally has the ability to withstand high pulse pressure. The sealing surface is precision ground and treated with high-performance sealing materials to ensure good sealing performance even under long-term high-frequency switch operations, preventing drilling fluid leakage.

When selecting, it is necessary to clearly distinguish the differences between ordinary industrial plug valves and specialized plug valves for petroleum drilling. The latter has been specially reinforced for harsh media such as sand and sulfur, and is not suitable for clean water or low-pressure gas transportation scenarios. If the operating conditions involve extremely high temperatures or ultra-high pressures, it is necessary to confirm whether the specific pressure temperature ratings match. Similar categories such as gate valves or ball valves can also achieve shut-off function, but plug valves have more advantages in anti clogging, quick operation, and convenient maintenance, especially suitable for drilling mud media containing solid particles. The purchaser should focus on material certification and pressure testing reports to ensure that the products comply with oilfield site safety regulations. During installation, it is necessary to ensure that the pipeline is aligned to avoid additional stress on the valve body. The flange connection bolts should be evenly tightened in diagonal order. It is recommended to regularly check the wear of the sealing surface and changes in operating torque for daily maintenance. If leaks or operational difficulties are found, the sealing components should be replaced or lubricating grease should be added in a timely manner. The typical service life depends on the corrosiveness of the medium and the level of management and maintenance, and is generally thoroughly disassembled and inspected during major repairs. Common faults include internal leakage caused by scratches on the sealing surface or stuck valve stem, which can be solved by cleaning the flow channel, re grinding the sealing surface, or adjusting the packing gland. Keeping the exterior of the valve clean and preventing sediment accumulation from affecting the flexibility of the operating mechanism is a key measure to extend the service life of 3-inch stainless steel plug valves.
