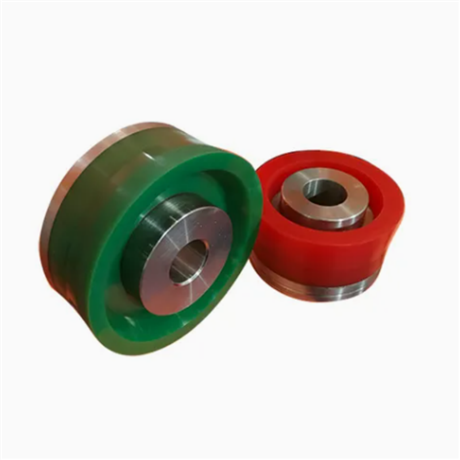

Wear resistant polyurethane piston assembly compatible with F-series PZ mud pump can be customized according to cylinder liner

Description :

  The wear-resistant polyurethane piston assembly is the core vulnerable part of the power end of the drilling mud pump, mainly solving the problems of sealing failure and rapid wear during high-pressure reciprocating motion. This component is suitable for mainstream models of mud pumps such as F series, PZ series, and Bomco. It achieves dynamic sealing between the piston and cylinder sleeve through excellent elastic recovery force, preventing mud leakage and maintaining stable pump pressure. Typical operating conditions include high load working environments such as oil drilling, shale gas extraction, and non excavation horizontal directional drilling. It can withstand high-frequency reciprocating impacts and abrasive wear, ensuring the continuous operation efficiency of the mud pump. It is a key component in maintaining the normal operation of the drilling fluid circulation system.

The polyurethane piston assembly is injection molded from high hardness and wear-resistant polyurethane material, which has extremely high tear resistance and hydrolysis resistance. The product specifications cover various cylinder liner diameters ranging from 75mm to 200mm, and support non-standard customization based on actual cylinder liner sizes to ensure precise fit tolerances. In terms of manufacturing process, the interior is usually embedded with a metal skeleton to enhance structural rigidity, and the external polyurethane layer is modified with a special formula to improve oil resistance, acid and alkali corrosion resistance, and high temperature resistance. The execution standard complies with API Spec 7K or relevant petroleum industry specifications, and undergoes rigorous pressure testing and life testing to ensure dimensional stability in high-pressure mud environments, avoiding increased sealing clearance caused by thermal expansion or mechanical deformation.

When selecting, it is important to confirm the specific model of the mud pump (such as F-500, PZ-700, etc.) and the inner diameter size of the cylinder liner currently in use. The installation structure of pistons for different brands of pumps may vary, and the clamp form or connection thread specifications need to be checked. If the mud has a high sand content or strong corrosiveness in the working conditions, it is recommended to prioritize the use of polyurethane materials with high hardness and added anti-wear fillers; If pursuing low friction coefficient to reduce energy consumption, models with lubricated surfaces can be selected. Compared with ordinary rubber pistons, polyurethane pistons usually have a 3-5 times longer wear life, but attention should be paid to their sensitivity to high temperatures and avoid long-term use in media exceeding 80 ℃ to prevent permanent deformation.

Before installation, the inner wall of the cylinder liner and piston rod should be thoroughly cleaned to check for scratches or rust, in order to avoid damaging the sealing surface of the new piston. It is recommended to use specialized tools or apply an appropriate amount of silicone grease to assist in pushing during installation. It is strictly prohibited to forcefully strike and cause the polyurethane layer to break. In daily maintenance, the pressure fluctuation and leakage of the mud pump should be regularly monitored. Once a decrease in displacement or leakage at the seal is found, the wear condition of the piston should be checked in a timely manner and replaced in groups to avoid uneven force caused by single replacement. When storing, it should be placed in a cool and dry place, avoiding direct sunlight and contact with ozone to prevent material aging and cracking. The typical replacement cycle depends on the severity of the working conditions, and it is generally recommended to conduct preventive inspections after running for 500-1000 hours.
