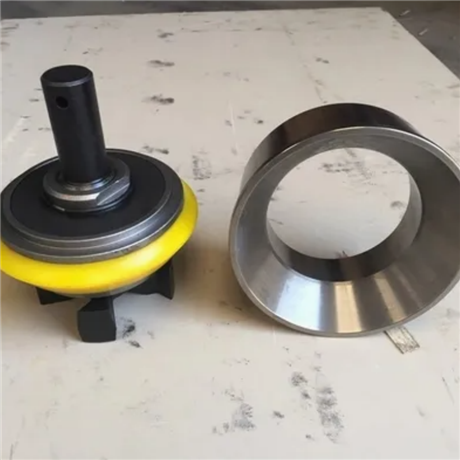

API 7K standard mud pump valve assembly wear-resistant valve body seat assembly

Description :

  The mud pump valve assembly is the core vulnerable component of the hydraulic end of the drilling mud pump, mainly solving the problems of sealing failure and erosion wear under high-pressure reciprocating motion. This component includes valve body, valve seat, and matching spring, and is typically used in drilling fluid transportation environments with high sand content and high pressure pulses. As a key sealing unit of mud pumps, its performance directly determines the volumetric efficiency and maintenance cycle of the pump, and is suitable for mud conveying systems in oil drilling rigs, shale gas extraction, and large-scale water dredging equipment.

The mud pump valve assembly is strictly manufactured in accordance with API 7K specifications. The valve body and seat are usually made of high-strength alloy steel or stainless steel substrates, and the surface is treated with tungsten carbide welding or ultrasonic spraying. The hardness can reach HRC60 or above to resist abrasive wear. The execution standards cover API Spec 7K and ISO 13533, with critical dimensional tolerances controlled at the micrometer level to ensure fit accuracy. Common diameter specifications range from 2 inches to 6 inches, with a rated working pressure range of 3000psi to 7500psi. Strict hydrostatic pressure testing and fatigue life verification are required to ensure structural integrity in harsh downhole environments.

When selecting a mud pump valve assembly, it is important to focus on matching the model, cylinder liner size, and rated pressure rating of the mud pump. Different brands of pumps (such as Gardner Denver, National Oilwell, etc.) have different valve chamber structures, and it is necessary to confirm that the geometric parameters such as valve body outer diameter, cone angle, and installation height are consistent. For high abrasive formations, it is recommended to use hard alloy valve seats with higher tungsten carbide content; If the medium is highly corrosive, duplex stainless steel or special coating materials should be given priority consideration. Do not use low-pressure series valve assemblies for ultra-high pressure pump types to avoid plastic deformation and seal leakage.

Before installing the mud pump valve assembly, it is necessary to thoroughly clean the mud and old seal residue in the valve chamber, and check the wear of the guide sleeve and spring seat. It is recommended to use specialized hydraulic tools for compression installation to avoid micro cracks in the valve body caused by hammering. In daily maintenance, regular monitoring of pump pressure fluctuations and displacement changes is necessary. When there is unstable pressure or abnormal noise, it often indicates that the valve seat sealing surface has pitting or leakage. When shutting down for maintenance, it is necessary to replace the valve body and seat in pairs, strictly prohibit mixing old and new, and tighten the gland according to the torque standard to extend the service life of the entire mud pump valve assembly.
