NANSTEEL brand J2-25-100-300-C1 hot-dip galvanized welded pipe support bracket

Description :

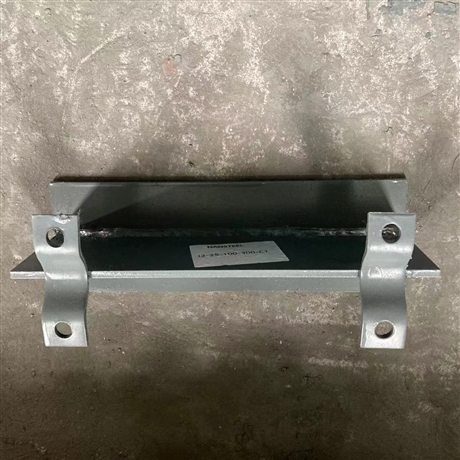

This product is a heavy-duty industrial welded pipe support designed specifically for fixing and supporting pipeline systems. From the picture, it can be seen that the main body of the pipe support is made of channel steel or I-beam structure, with ear plates (fixed supports) with installation holes welded on both sides. The structure is stable and can withstand large vertical loads and horizontal thrust of the pipeline. The surface has undergone hot-dip galvanizing anti-corrosion treatment, presenting a uniform silver gray metallic luster, with excellent rust and corrosion resistance, suitable for long-term use in harsh environments such as humidity, outdoor or chemical.

The product label displays the brand as "NANSTEEL" and the specific model specification as "J2-25-100-300-C1". This type of number usually corresponds to a specific range of pipe diameters, insulation layer thickness, and load level, indicating that the product has standardized production specifications, which facilitates engineering selection and matching installation. The bottom plane design and the curved or flat contact surfaces on both sides (depending on the specific internal structure) can effectively disperse the weight of the pipeline and prevent local stress concentration from damaging the pipeline anti-corrosion layer.

This pipe bracket is widely used in pipeline engineering in the fields of petroleum, chemical, power, heating, water treatment, etc., and is particularly suitable for key nodes that require rigid fixation and limit pipeline displacement. Its welding process is precise, with full and uniform welds, ensuring the strength and safety of the overall structure. During installation, bolts can be threaded through the ear plate holes on both sides to securely fix it to concrete piers, steel structural beams, or embedded parts. As an important component of the pipeline support and hanger system, it not only supports the weight of the pipeline, but also effectively absorbs some of the stress caused by thermal expansion and contraction of the pipeline, ensuring the safe and stable operation of the pipeline network system. Suitable for the procurement and supporting use of various engineering projects with different pipe diameters ranging from DN25 to DN300.
